Core Overview

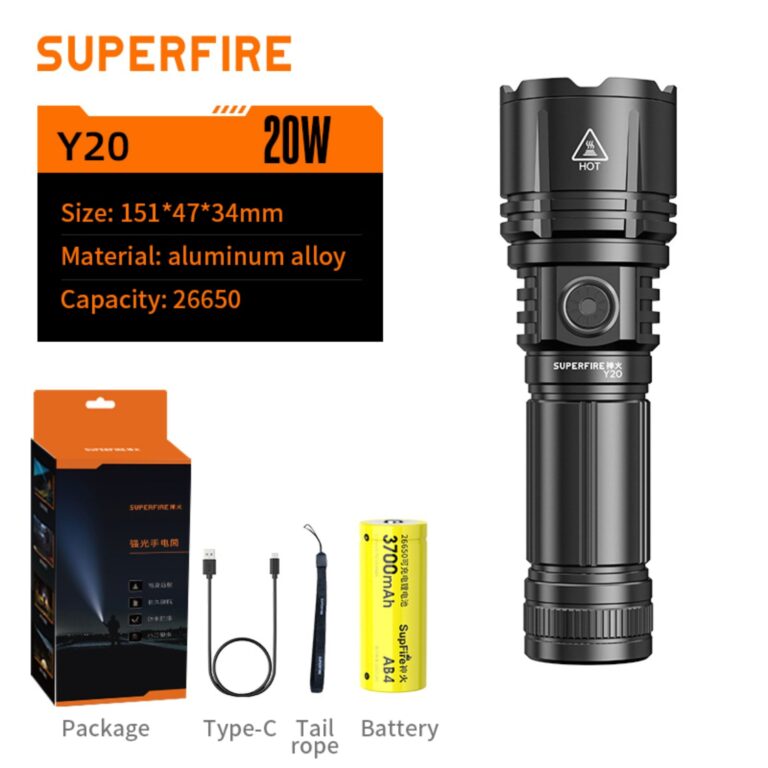

The **SUPERFIRE Y20** is a high-performance zoomable long-range flashlight delivering **1300 lumens** of brilliant white light (6650K) with an impressive **700-meter beam range** — designed for outdoor exploration, security patrol, search operations, and industrial inspection tasks. Powered by a single high-capacity 26650 lithium battery (5000mAh) and driven by a 20W SH-S31 LED, the Y2 provides approximately 5.5 hours of runtime on a full charge. The built-in Type-C 5V/1A charging system ensures convenient recharging, with a full charge taking about 7 hours. Weighing just 205g and measuring 151×47×34mm, this compact flashlight packs serious power into a highly portable form factor.
The Y20 features an innovative push-pull zoom mechanism that transforms the beam from a wide floodlight to a tight spotlight in seconds, giving users precise control over illumination coverage. The single-button interface supports five mode cycling (Low → Medium → High → Strobe → SOS → Off), plus convenient double-click instant turbo and long-press (2-second) shutdown with mode memory — ensuring quick, intuitive operation under any condition. Housed in a rugged black aluminum alloy body with IP43 water resistance and 1-meter drop protection, the Y20 is built to withstand demanding field use while maintaining reliable performance.
PRODUCT Characteristics
- 1300-Lumen High-Brightness Output

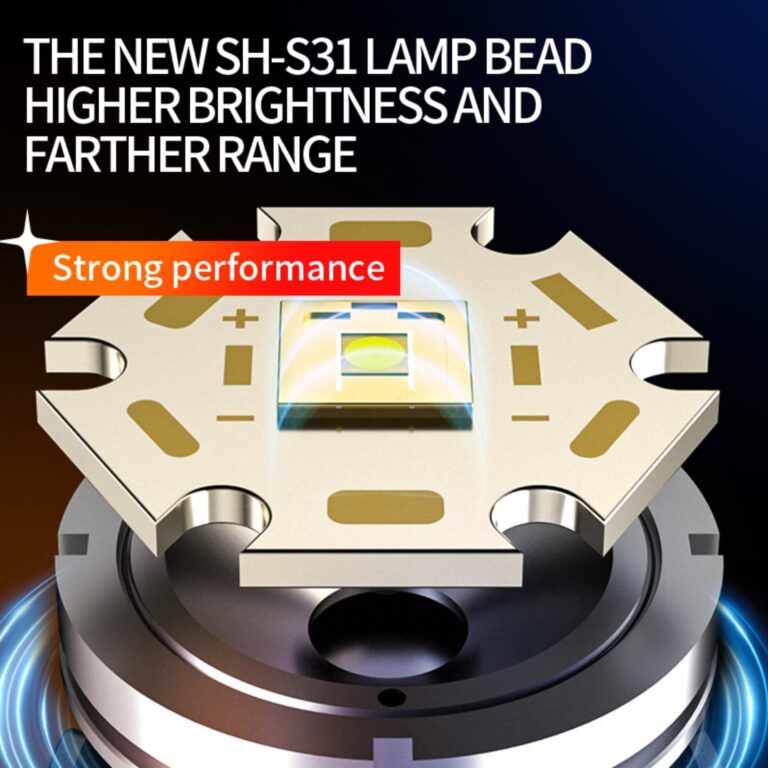

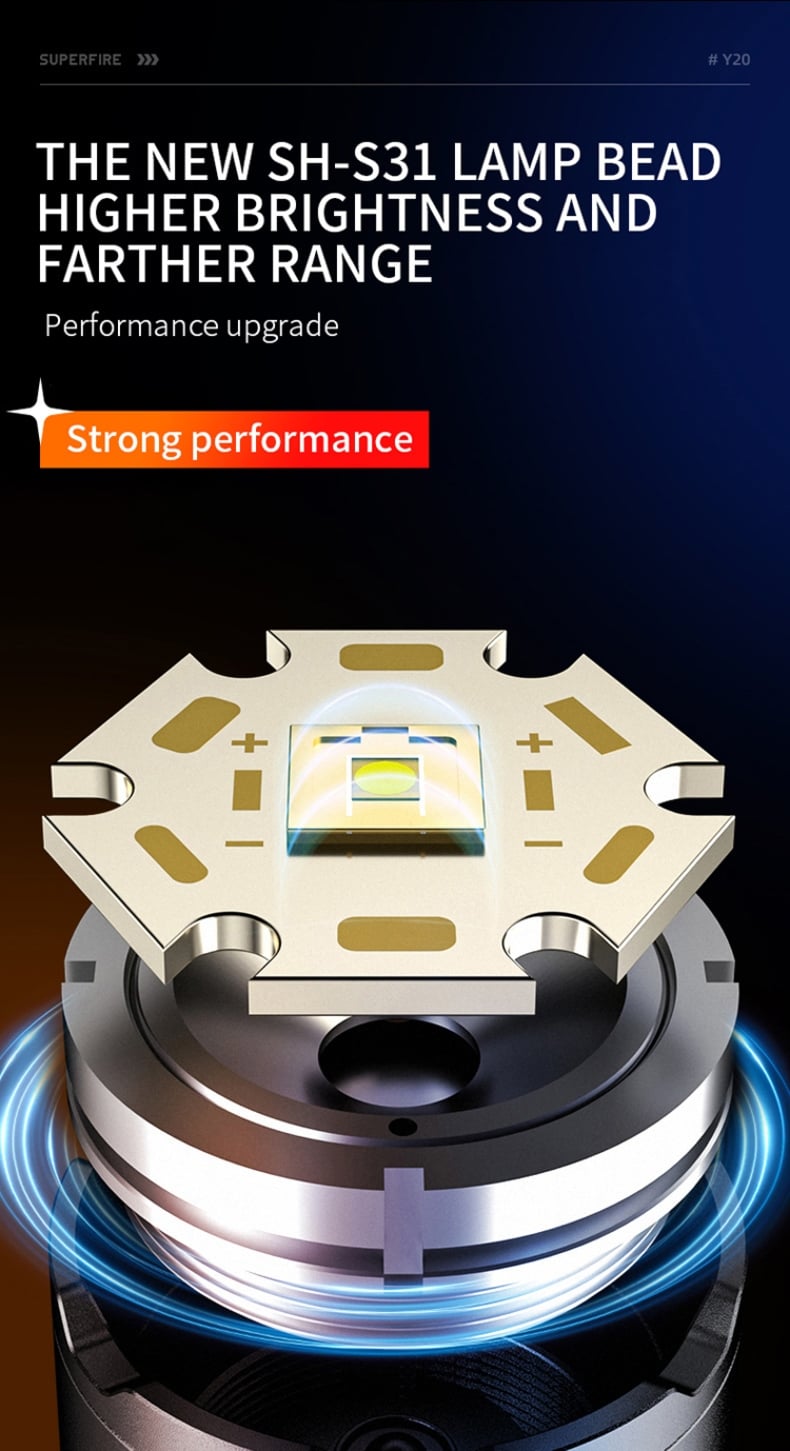

The 20W SH-S31 LED produces a powerful 1300-lumen beam with 6650K cool white color temperature, delivering clear, natural illumination that cuts through darkness for effective search, patrol, and work-site lighting.
- 700-Meter Long-Range Beam

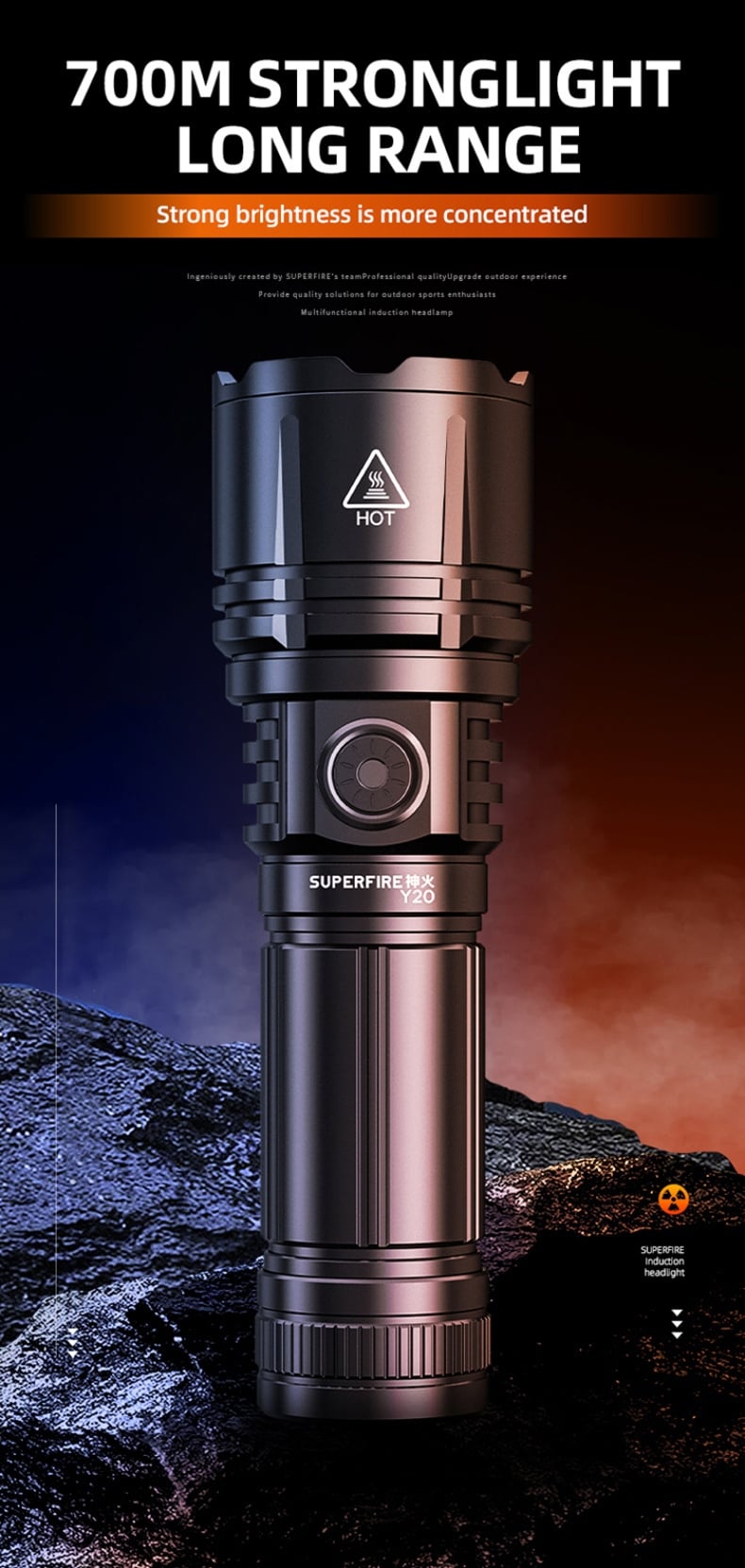

Paired with the deep reflector and zoomable optic, the focused beam reaches up to 700 meters, making the Y20 ideal for long-distance spotting, perimeter security, search and rescue, and open-terrain navigation.

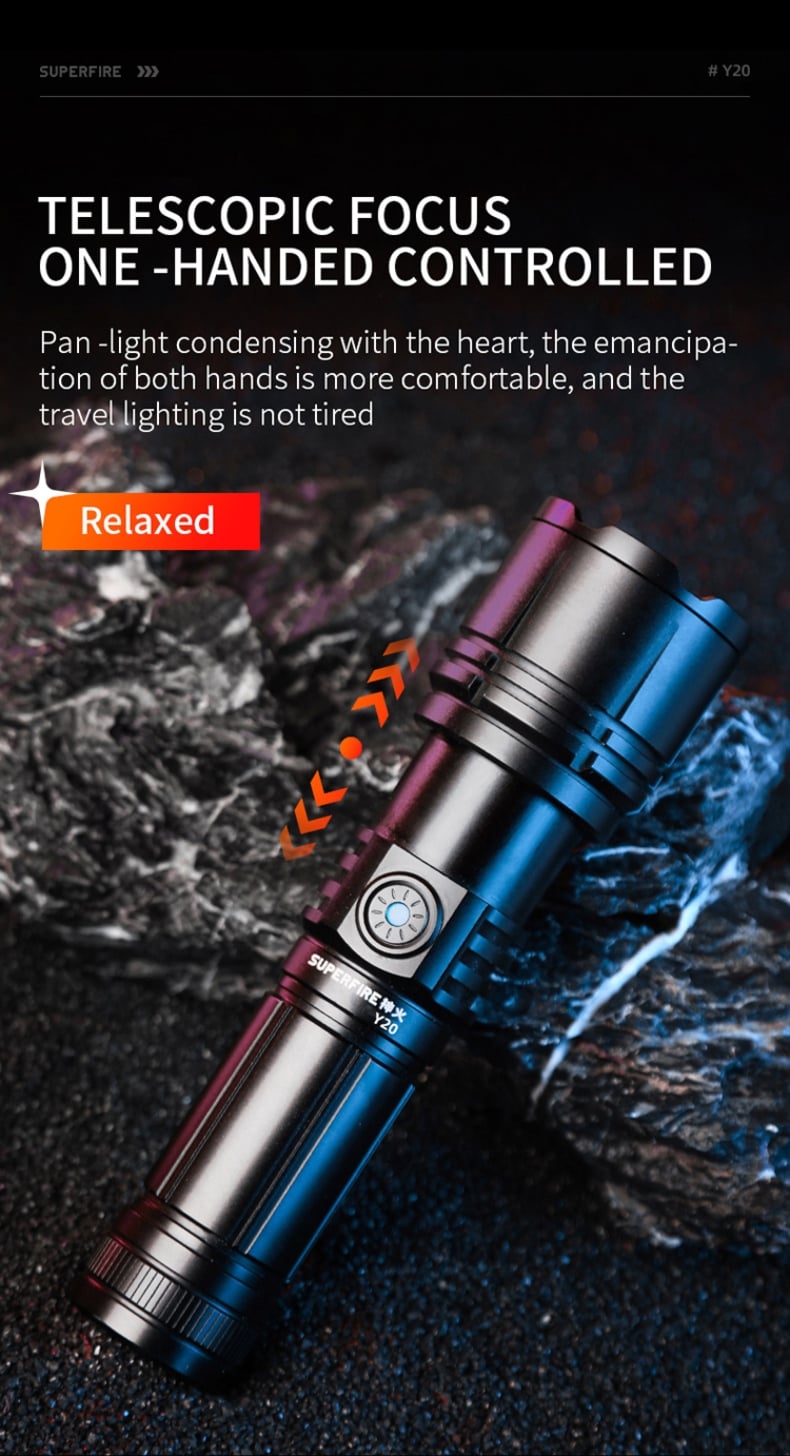

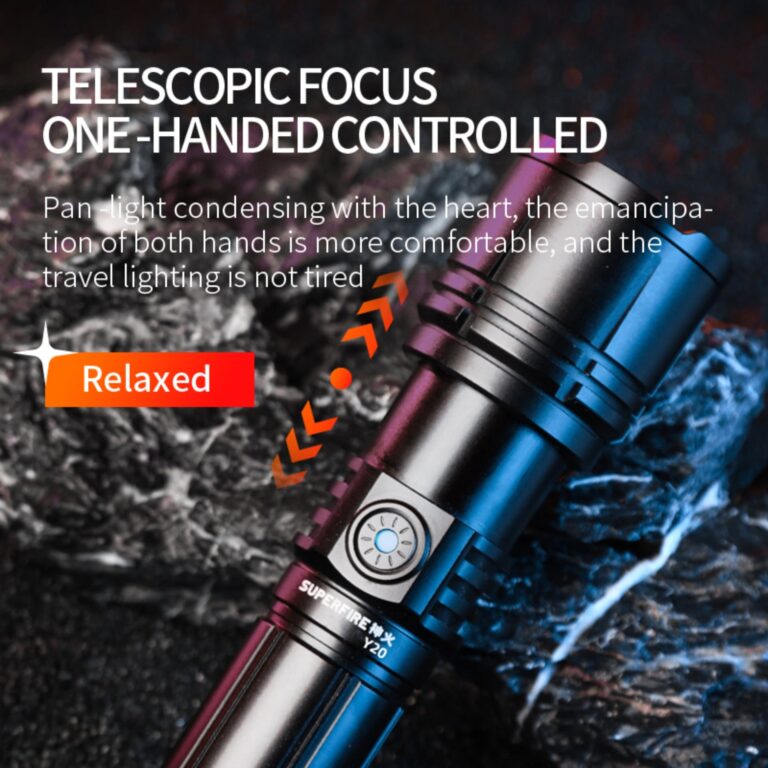

- Push-Pull Zoomable Optics
The telescopic zoom head adjusts seamlessly from wide flood to tight spot beam, adapting instantly to different scenarios — from close-quarters area lighting to long-distance target identification — all with a simple sliding motion.
- Intuitive Mode Control with Memory
The single-button interface cycles through 5 modes plus strobe and SOS, with added conveniences: double-click for instant high mode, 2-second long-press for shutdown from any mode, and mode memory function that recalls your last used brightness level.

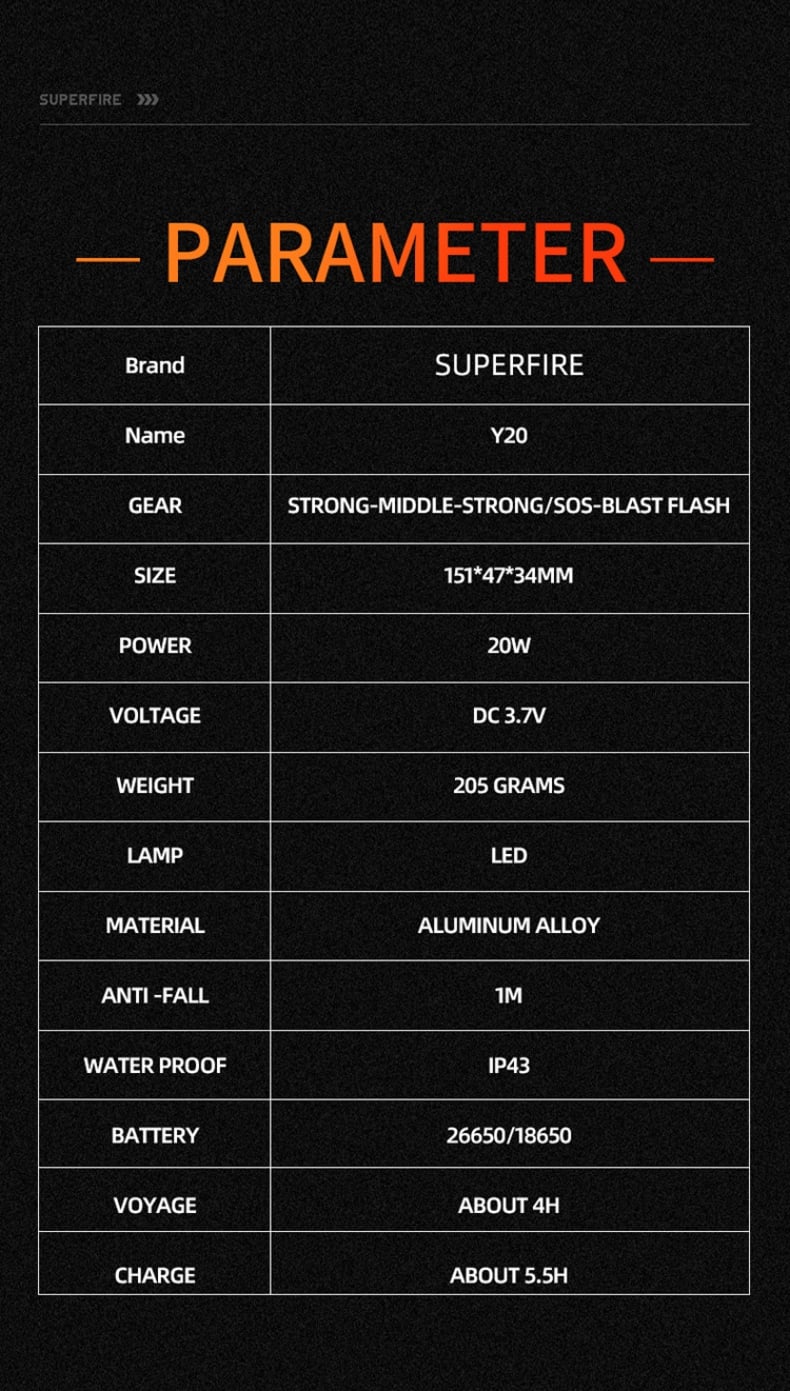

PRODUCT Specifications
| Brightness | 1300LM |
| Power supply | 20W |

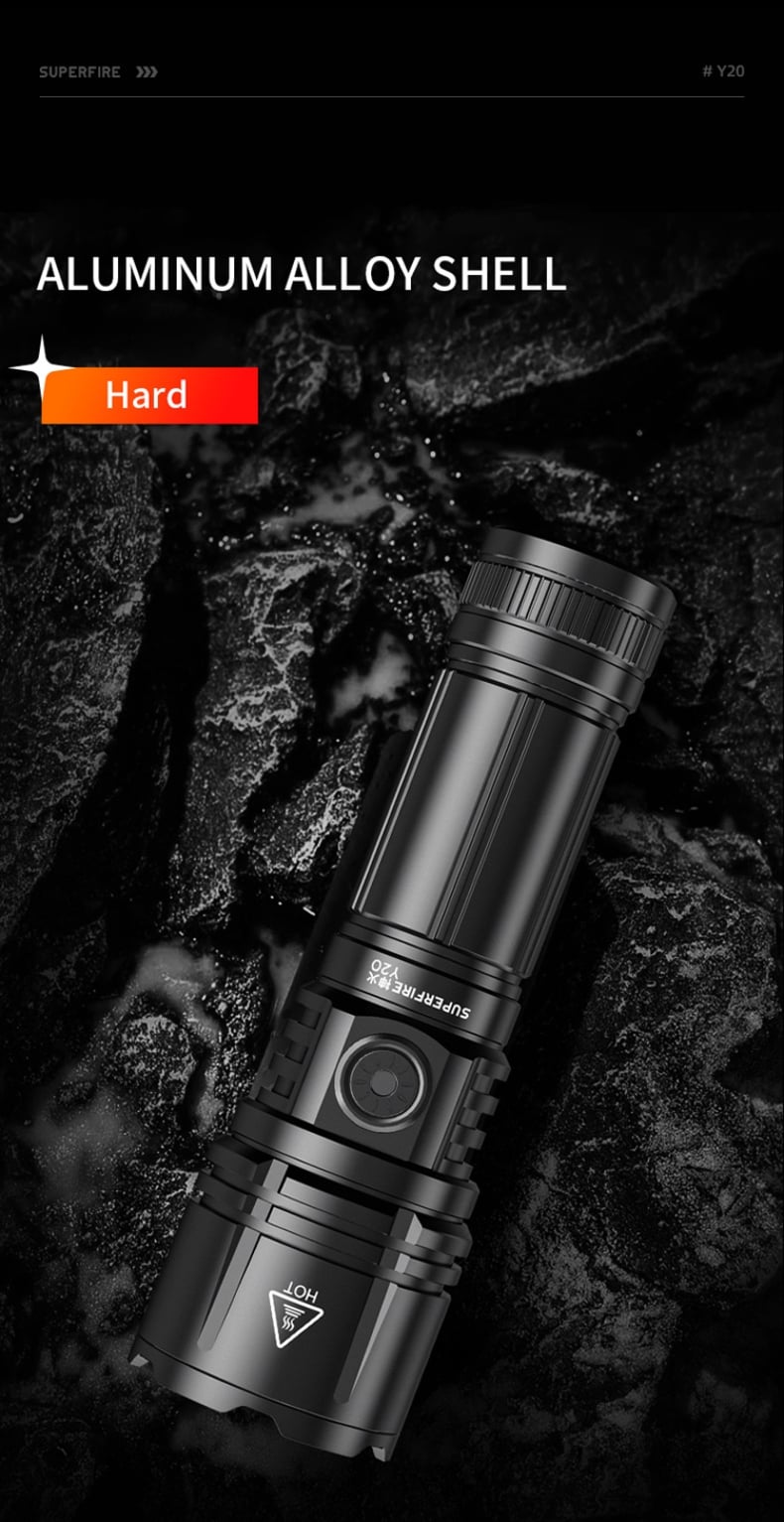

| Material | Aluminum alloy |
| Size | 151*47*34MM |
| Net weight | 205g |
| Waterproof | IP43 |
| Running time | 4H |
| Charging time | about 5H |
| Charging port | Type-C |
| 距离 | 700m |
| Battery capacity | 26650/3500mAh |
| Mode | Low light-medium light-strong light-strobe-SOS-off |
PRODUCT Details
Video
常见问题解答
How does the zoom function work on the Y20?
The Y20 features a push-pull telescopic zoom mechanism. Simply slide the head of the flashlight forward to focus the beam into a tight spotlight for long-distance viewing, or pull it back to widen the beam into a floodlight for close-range area illumination. The zoom adjusts smoothly and locks securely in position.
What is the mode sequence and how do I use the special controls?

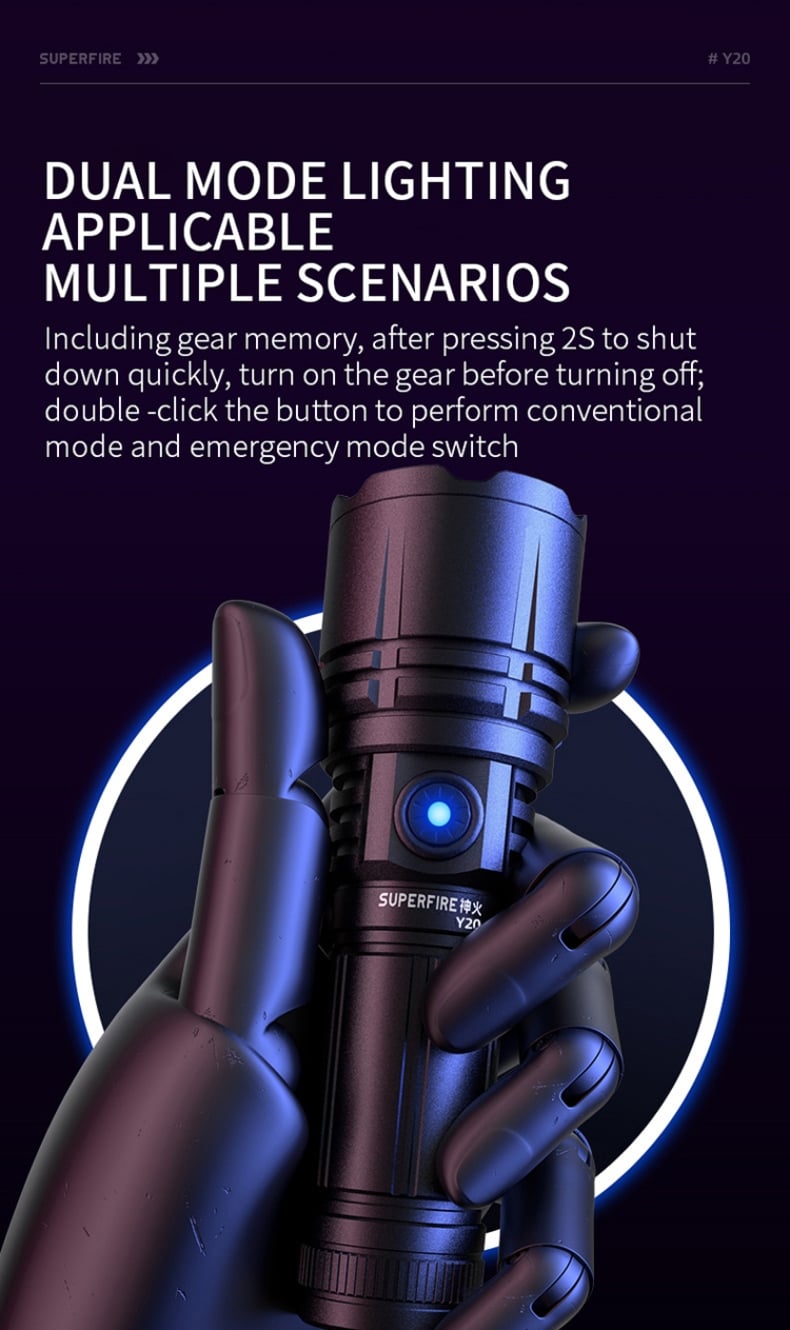

The Y20 cycles through Low → Medium → High → Strobe → SOS → Off with each press of the side button. Additional shortcuts: double-click from any mode to instantly activate high (turbo) mode, and press and hold for 2 seconds from any mode to turn off directly. The flashlight also features mode memory, so it remembers your last used brightness setting when turned back on.
How long does the battery last, and how do I charge it?

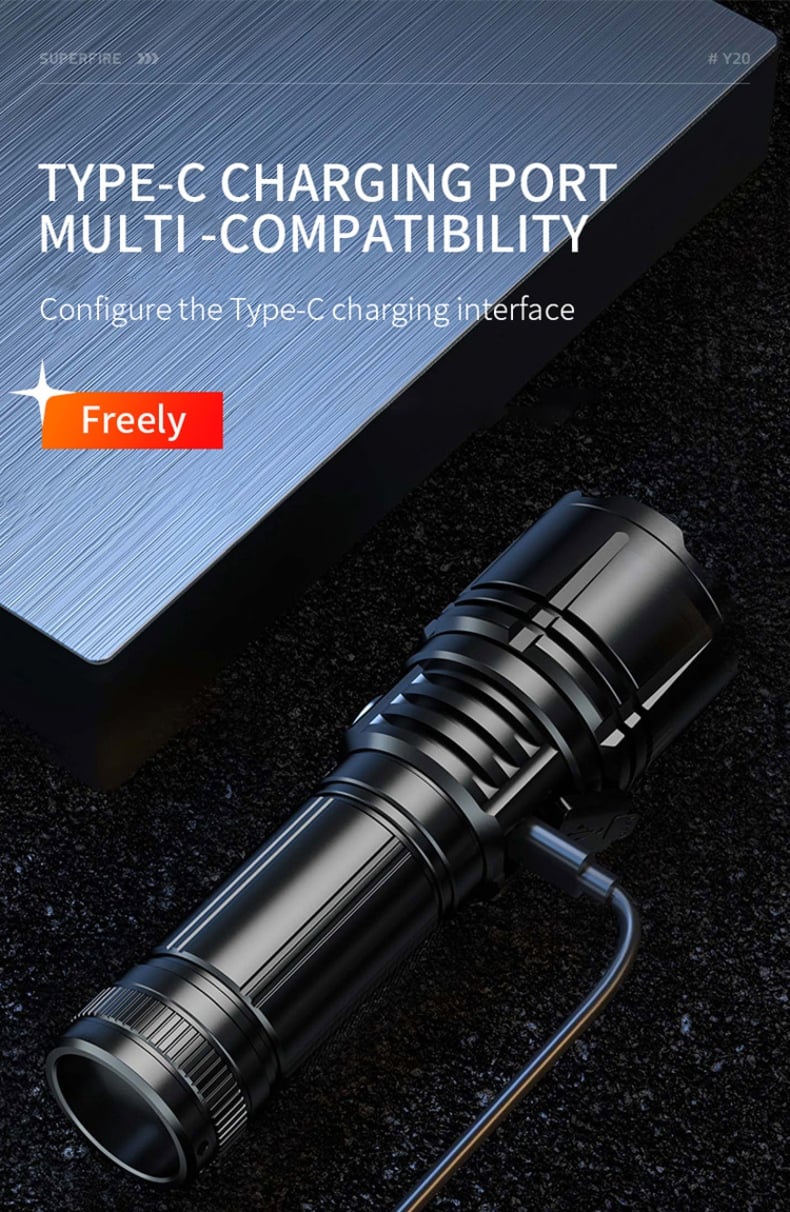

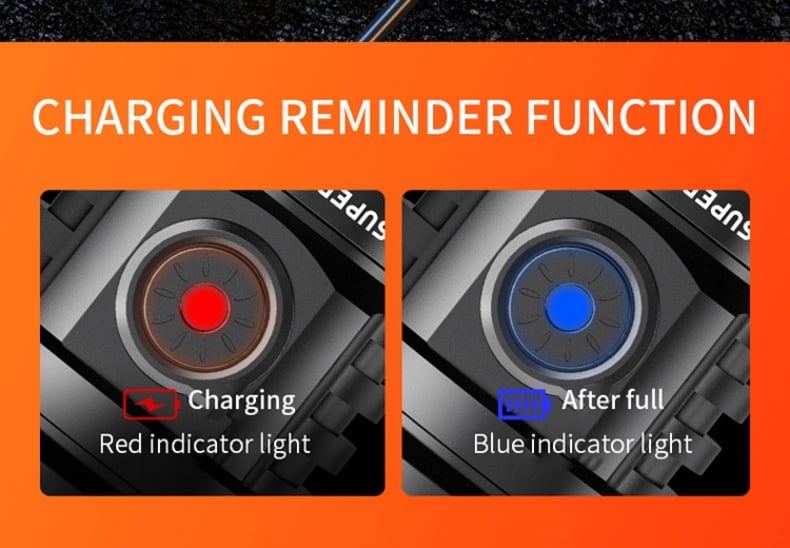

The Y20 runs on a single 26650 lithium-ion battery (5000mAh included), providing approximately 5.5 hours of runtime depending on the mode used. Charging is done via the built-in Type-C port at 5V/1A input. The red indicator light stays on during charging and turns blue when the battery is fully charged, which takes about 7 hours.
Is the Y20 waterproof and durable enough for outdoor use?

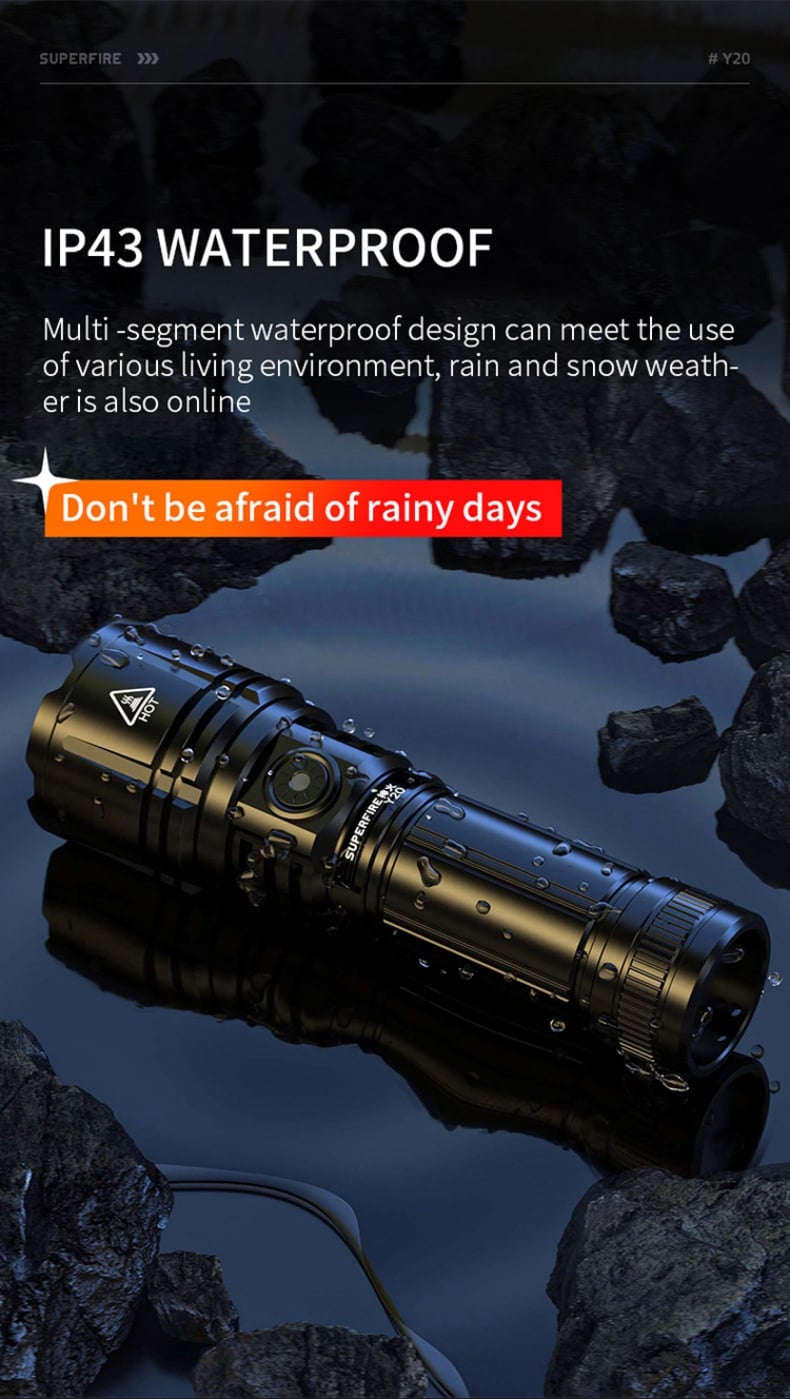

The Y20 has an IP43 waterproof rating, which means it is protected against splashing water from any direction and can handle light rain and outdoor moisture. The aluminum alloy body provides excellent durability, and the 1-meter drop resistance ensures the flashlight survives accidental falls during hiking, camping, or work use.
What safety features does the Y20 have?
The Y20 is equipped with a comprehensive set of safety protections including: reverse polarity protection (prevents damage if battery is inserted incorrectly), overcharge protection, over-discharge protection, low voltage shutdown (automatically turns off when battery is depleted), and an energy-saving program to extend battery life. The Type-C charging system also features charging status indicators for user convenience.
Customization & OEM Services
SUPERFIRE provides comprehensive OEM and ODM services, supporting private-label brands, industrial equipment distributors, outdoor gear wholesalers, security and law enforcement outfitters, diving and marine equipment suppliers, cycling accessory brands, and corporate procurement programs worldwide. With 18+ years of brand manufacturing expertise, your customized products benefit from the same quality systems trusted by our own SUPERFIRE-branded lines.
- Logo & Brand Marking
Custom laser engraving and heat transfer logo application on the Y20 body and bezel. We support logo placement on the head, barrel, and tail cap with precise alignment. Custom artwork in AI, CDR, or PDF format is accepted for full Pantone color matching.
- Custom Packaging & Labeling
The standard packaging can be upgraded to custom-designed gift boxes, blister packs, or plain bulk cartons. We offer custom specification labels, barcode stickers (EAN/UPC), and multi-language packaging (English, Spanish, French, German, Arabic, etc.) tailored to your target market.
- Battery Configuration Options
The standard 1×26650 5000mAh configuration can be customized: higher capacity 26650 cells, lower capacity for cost-sensitive markets, or battery-less SKU for regions with lithium import restrictions. All battery options come with UN38.3, CE, RoHS, and MSDS documentation.
- Accessory Customization

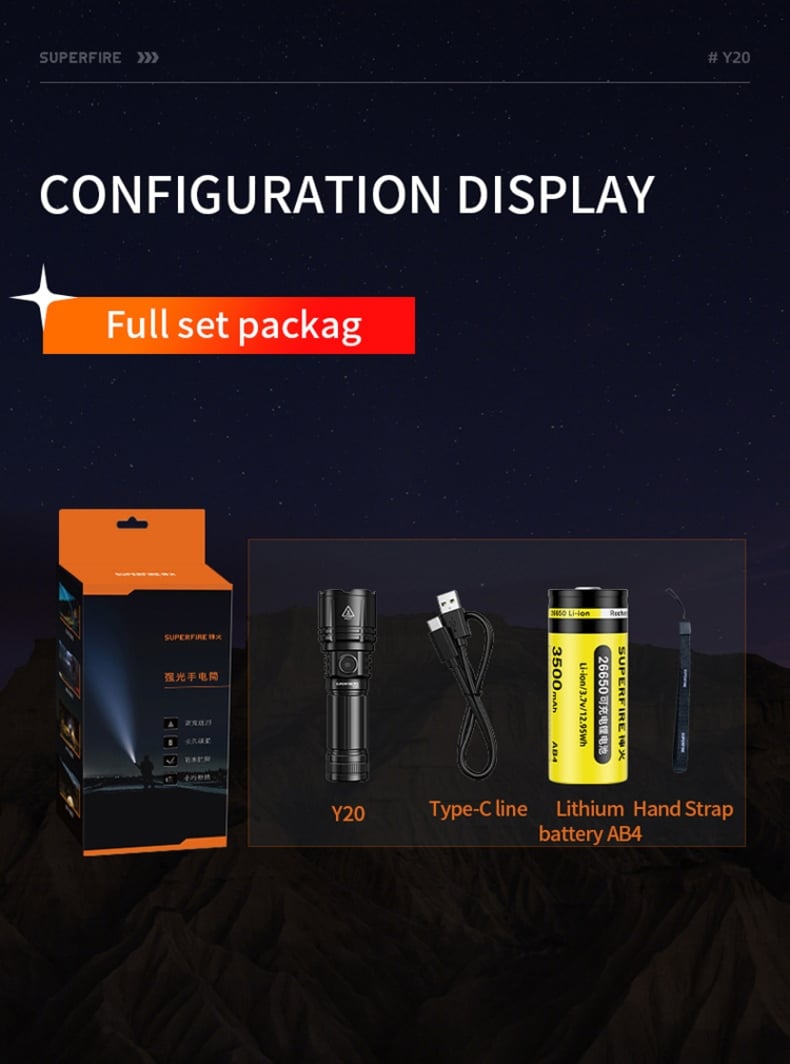

Build your custom Y20 kit with optional accessories: nylon belt holster, wrist strap upgrade, spare 26650 battery, AC wall charger with international plugs, car charger, colored lens filters (red/green/blue), diffuser tip, or EVA foam hard case for premium presentation.
For OEM inquiries, distributor partnerships, or volume pricing,
contact us at [email protected] or via WhatsApp at +86 199 2887 7060.
