Setup and Adjustment

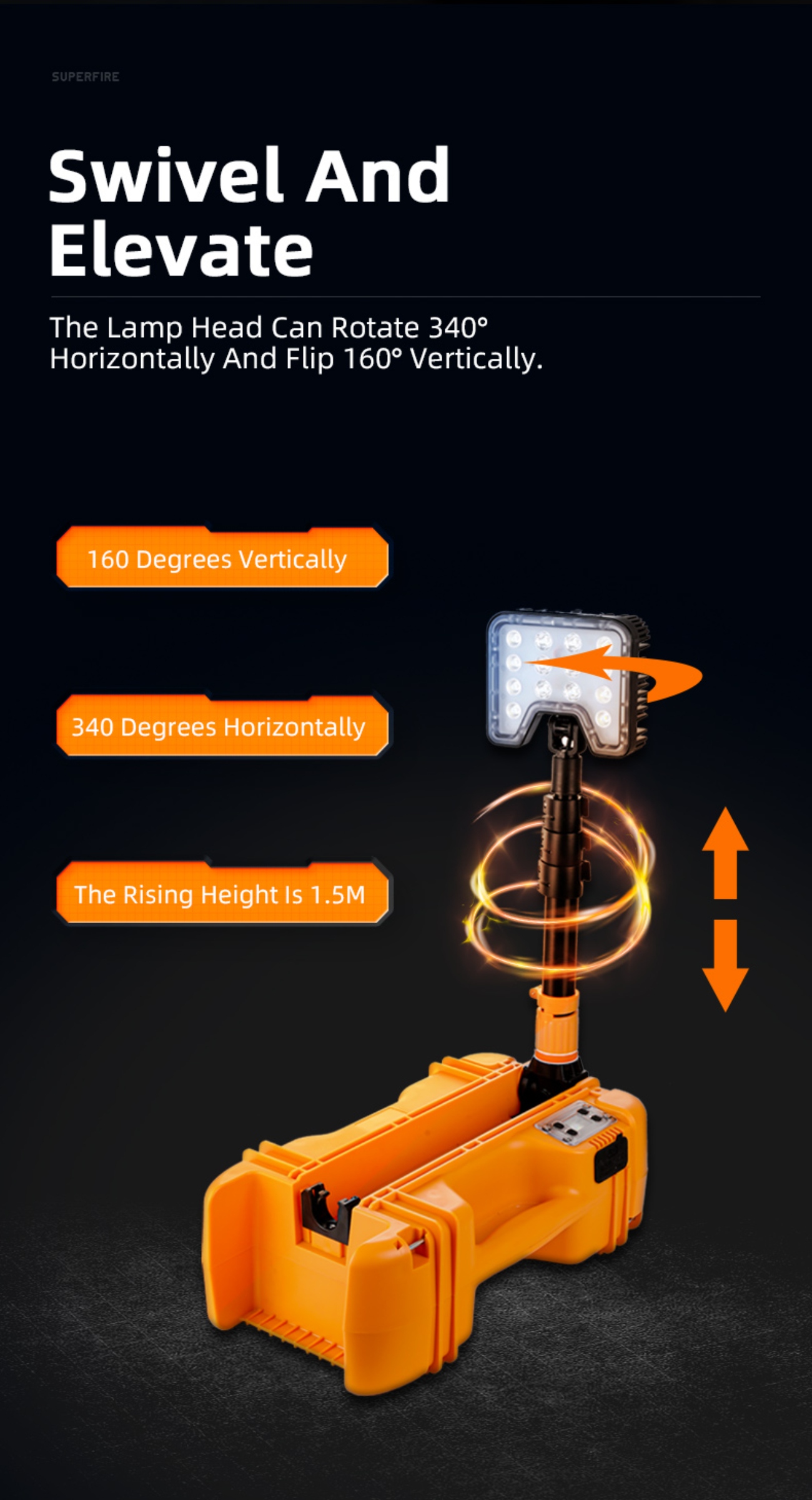

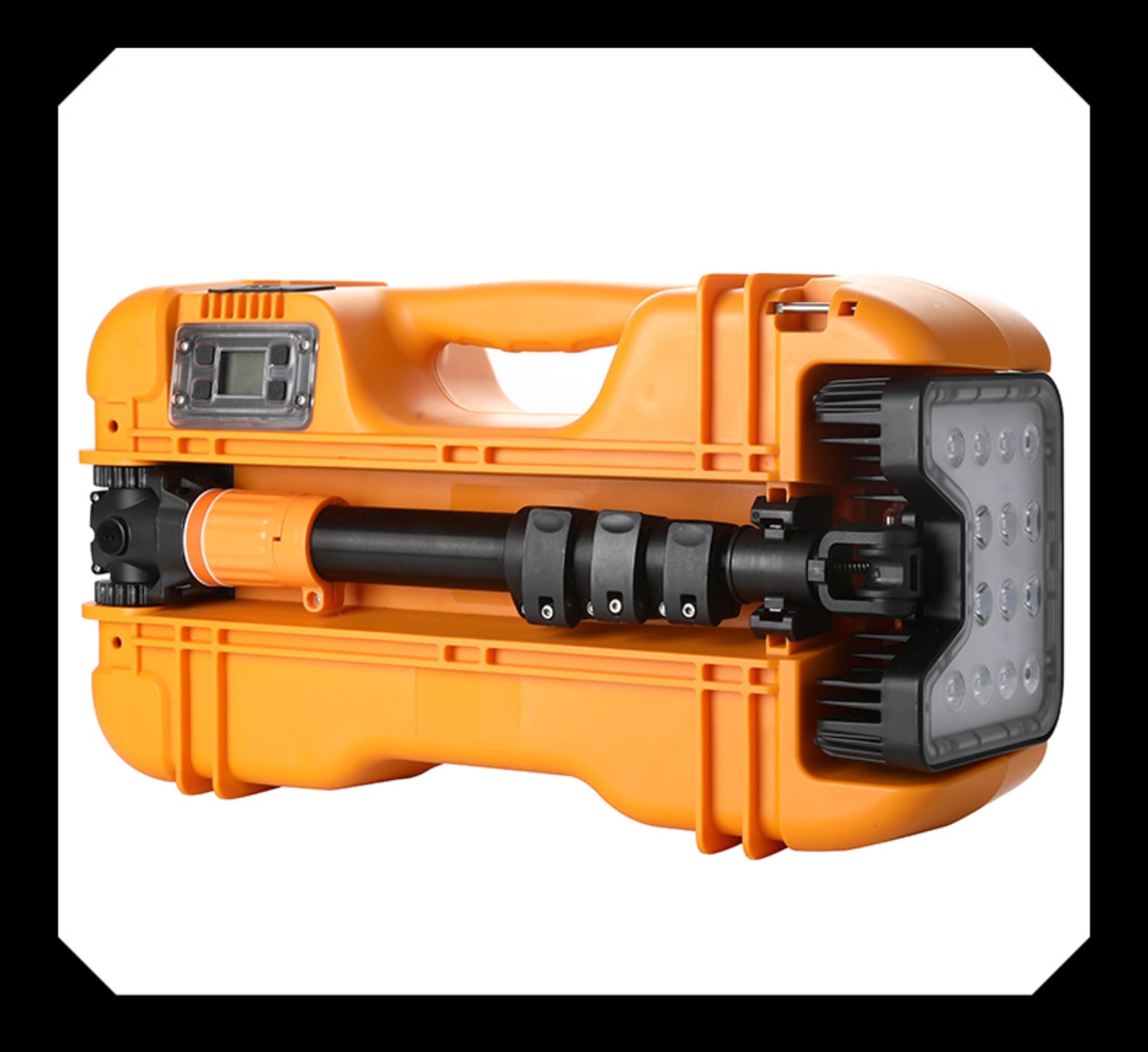

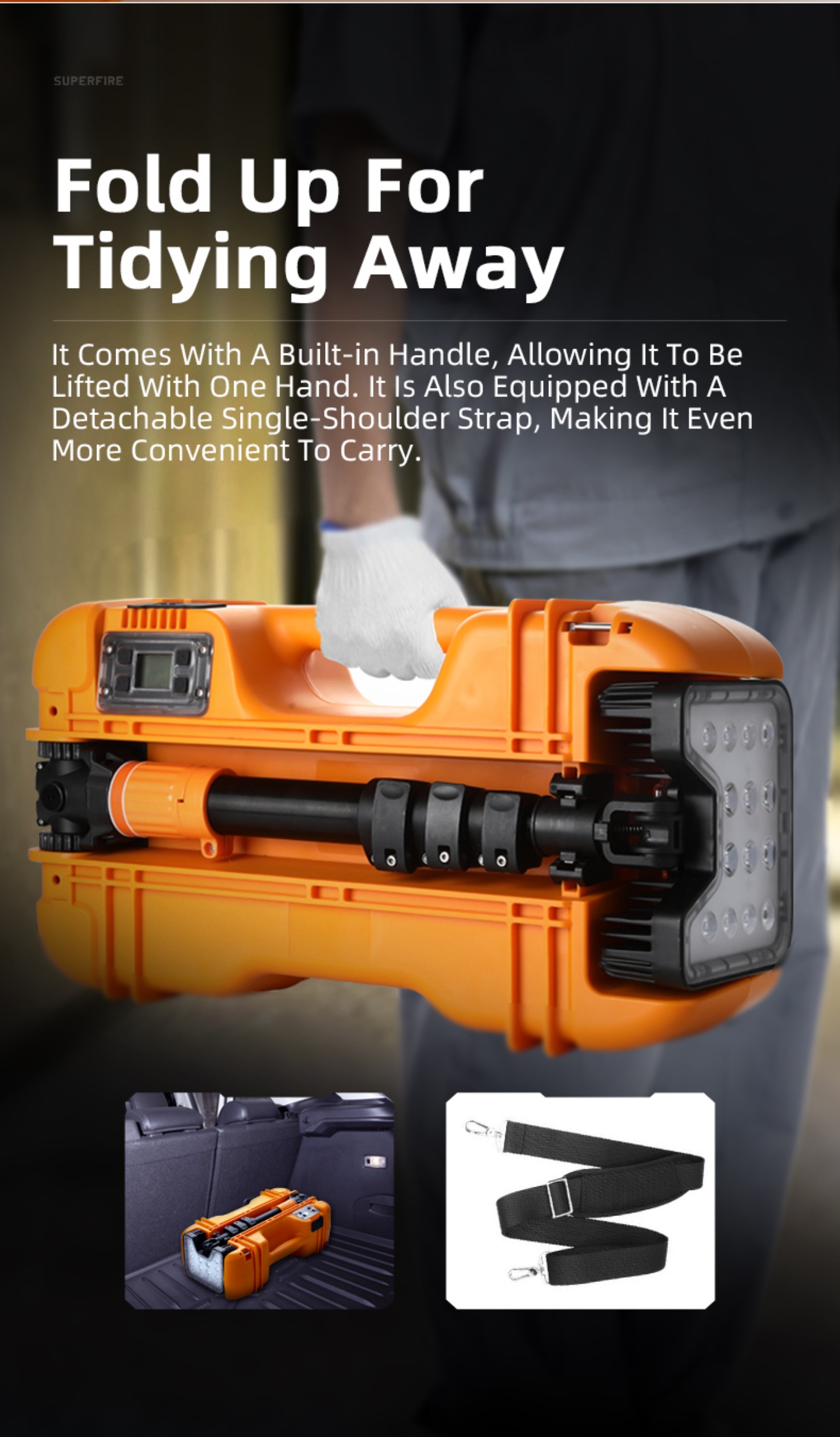

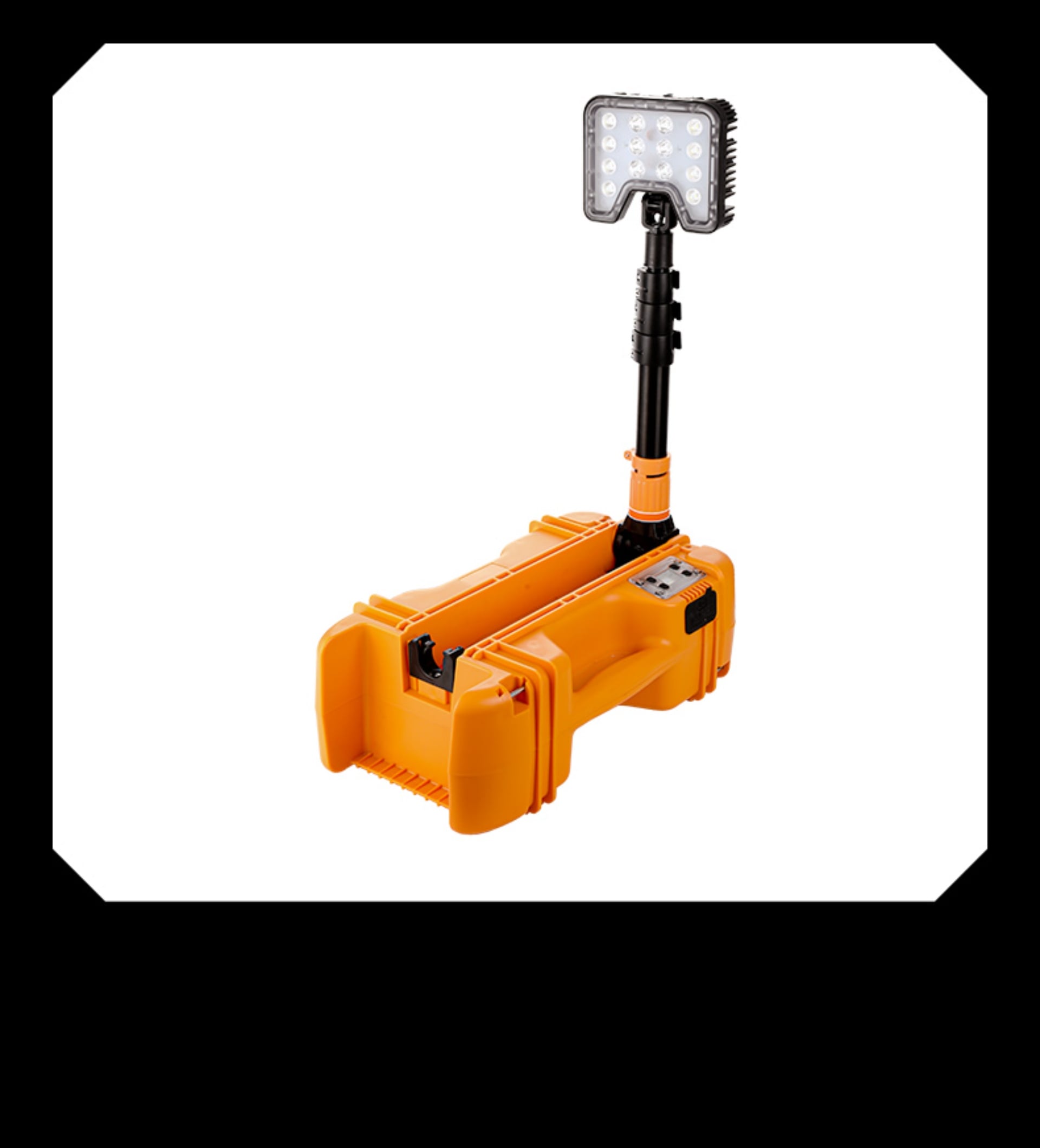

Place the light on a stable surface. Check whether the yellow locking collar at the bottom of the telescopic pole is in the closed position. In this state, pull the lamp head out from the housing and raise it until the pole is vertical. Then twist the yellow locking collar downward to secure the pole. After that, lift the lamp head into position. The lamp head supports 340° horizontal rotation and 160° vertical tilt.
The pole consists of three telescopic sections, each with a locking clamp to fix the desired height.
Power On

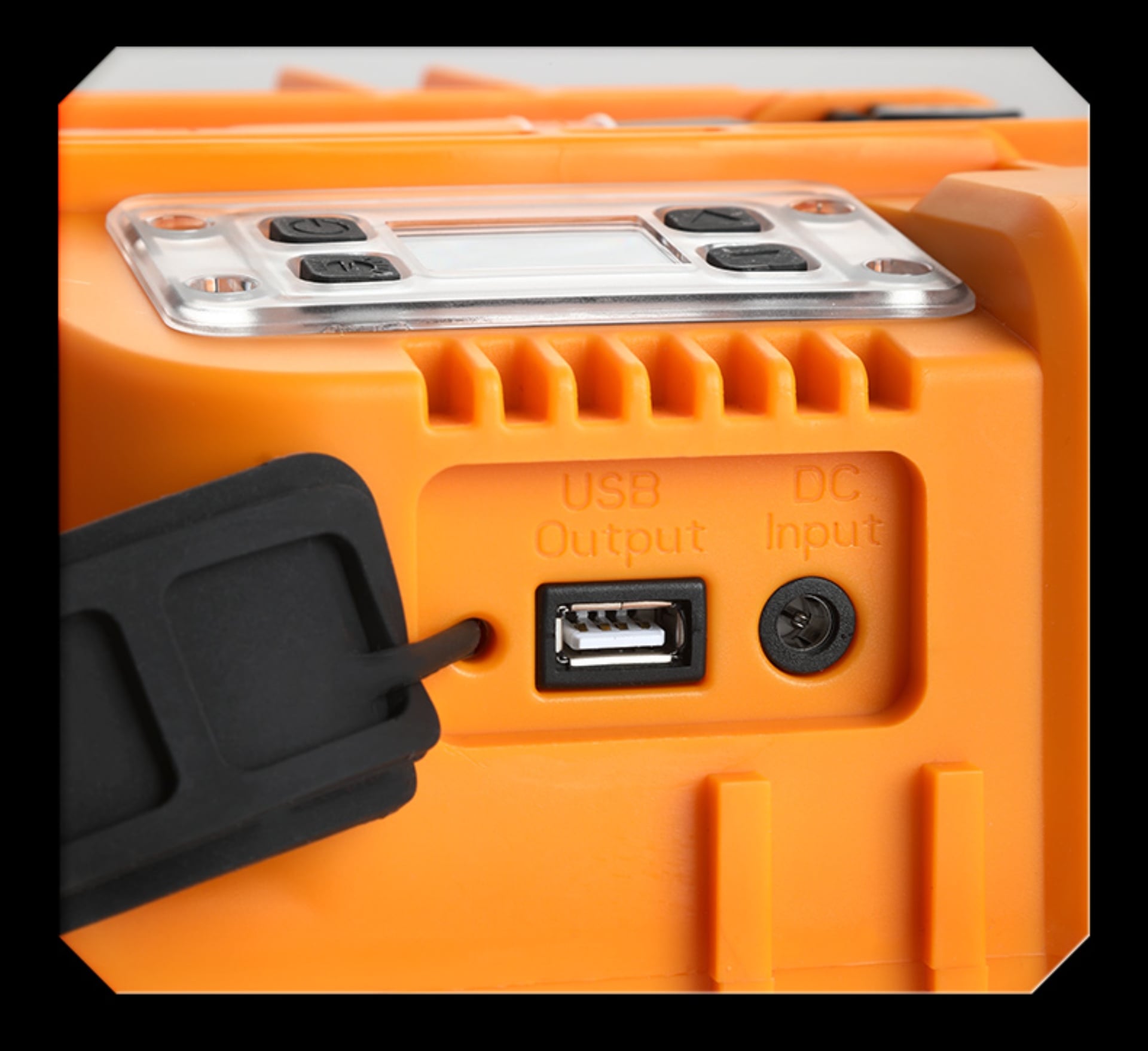

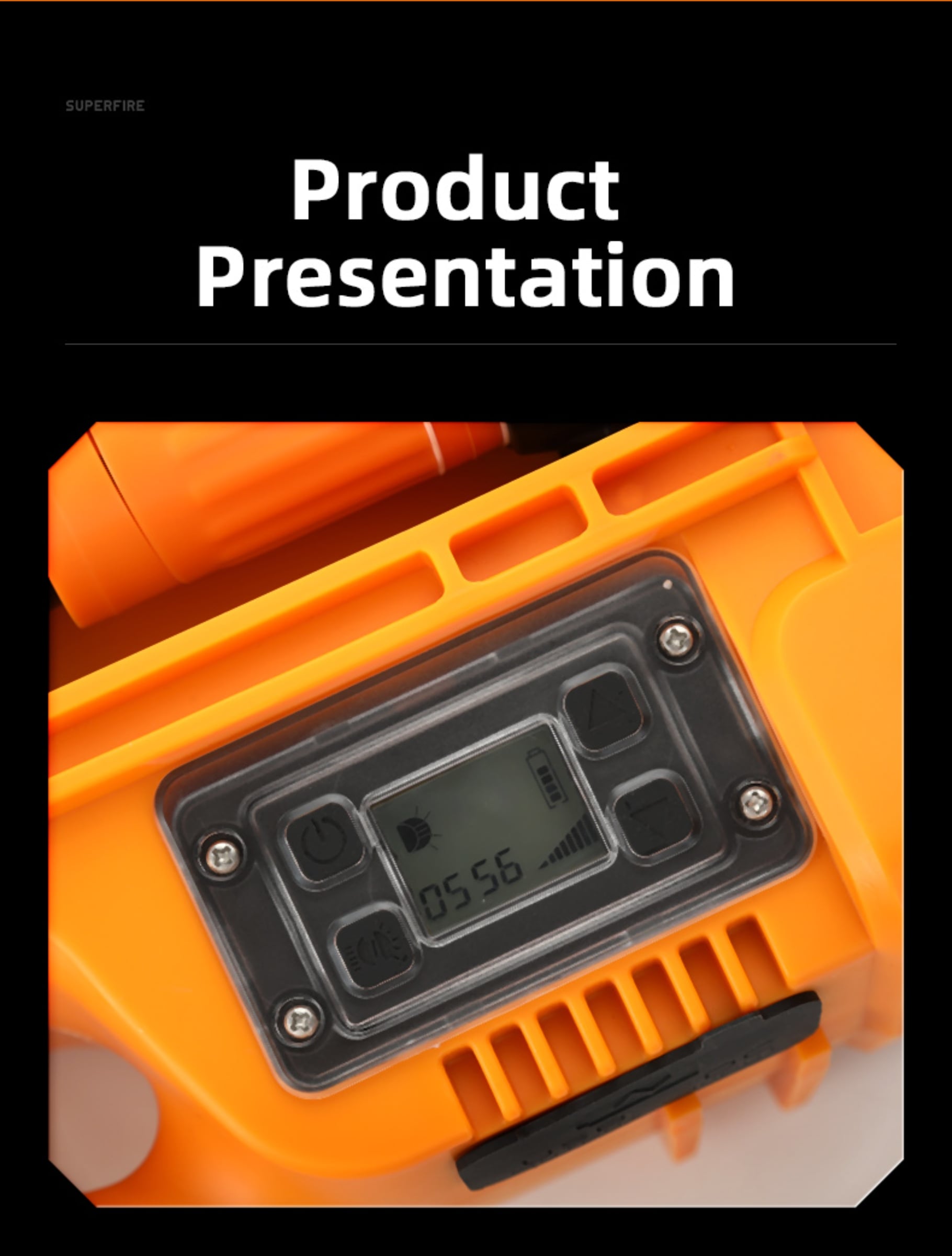

After adjusting the height, press the power button on the control panel to turn on the light (default mode: spotlight + floodlight on simultaneously). Then adjust the lighting angle and direction as needed.

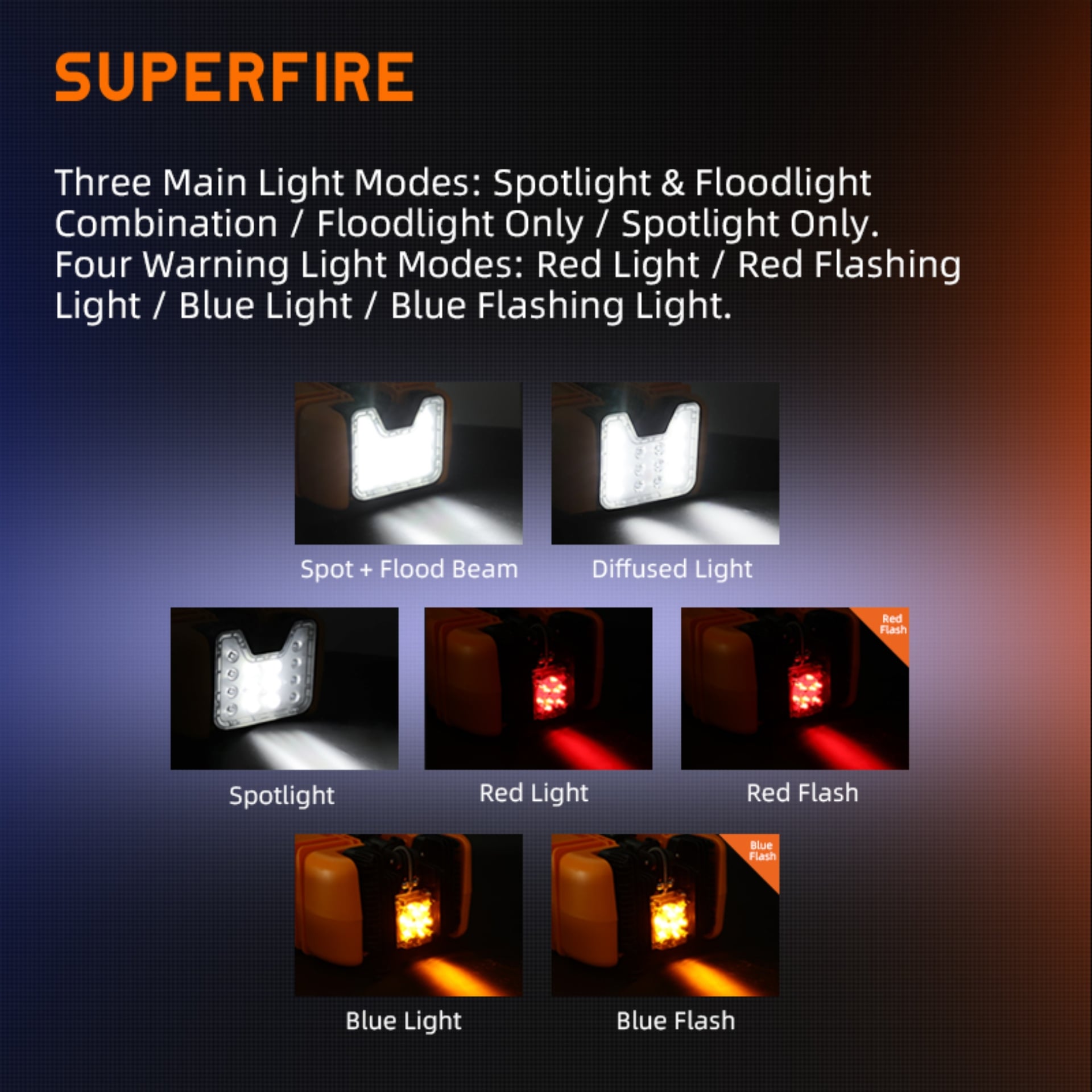

Lighting Modes & Dimming

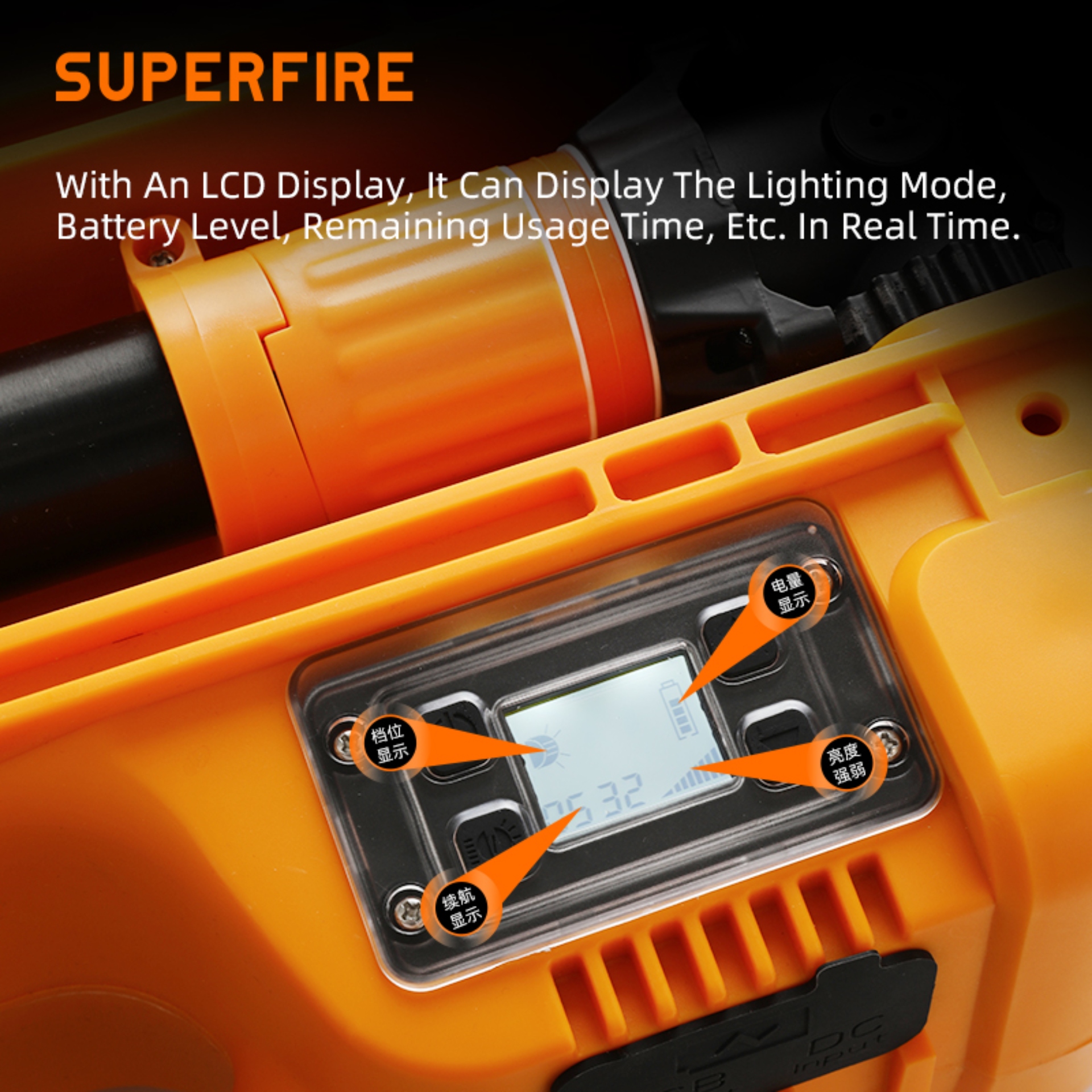

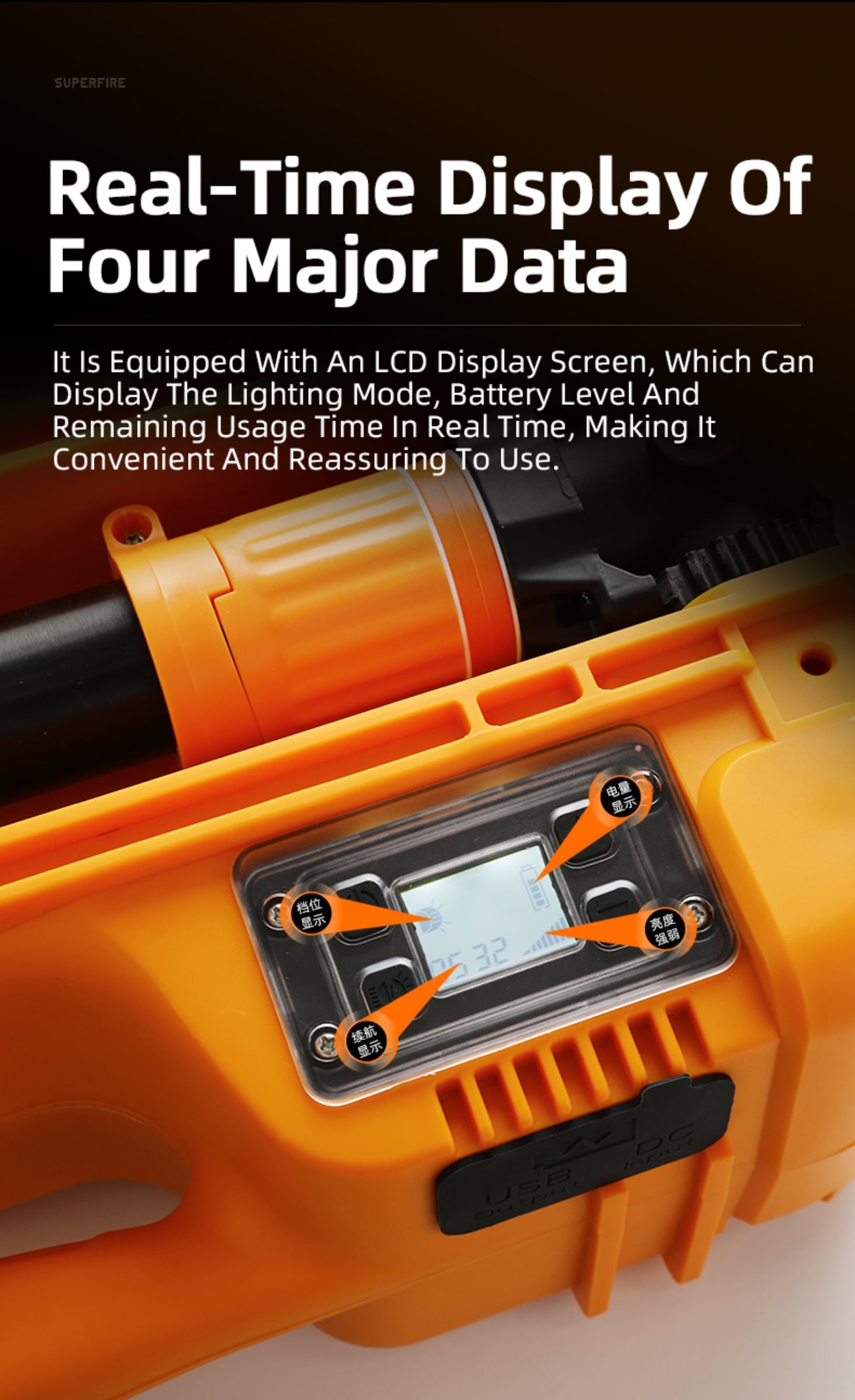

During use, you can select spotlight or floodlight mode via the control panel. Use the up and down buttons to achieve stepless dimming, allowing brightness adjustment for different environments. The display shows the remaining runtime of the light.
Warning Light Modes

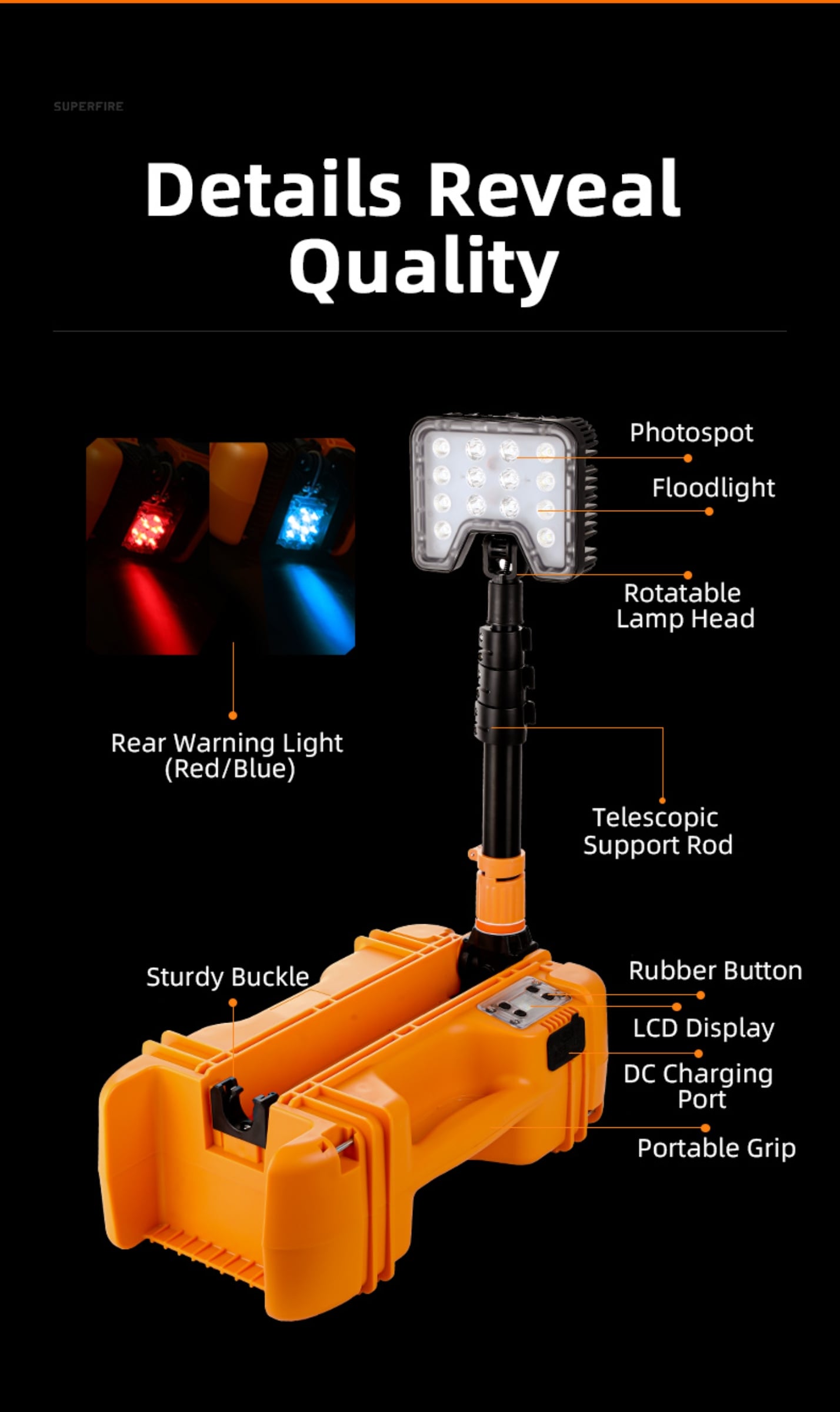

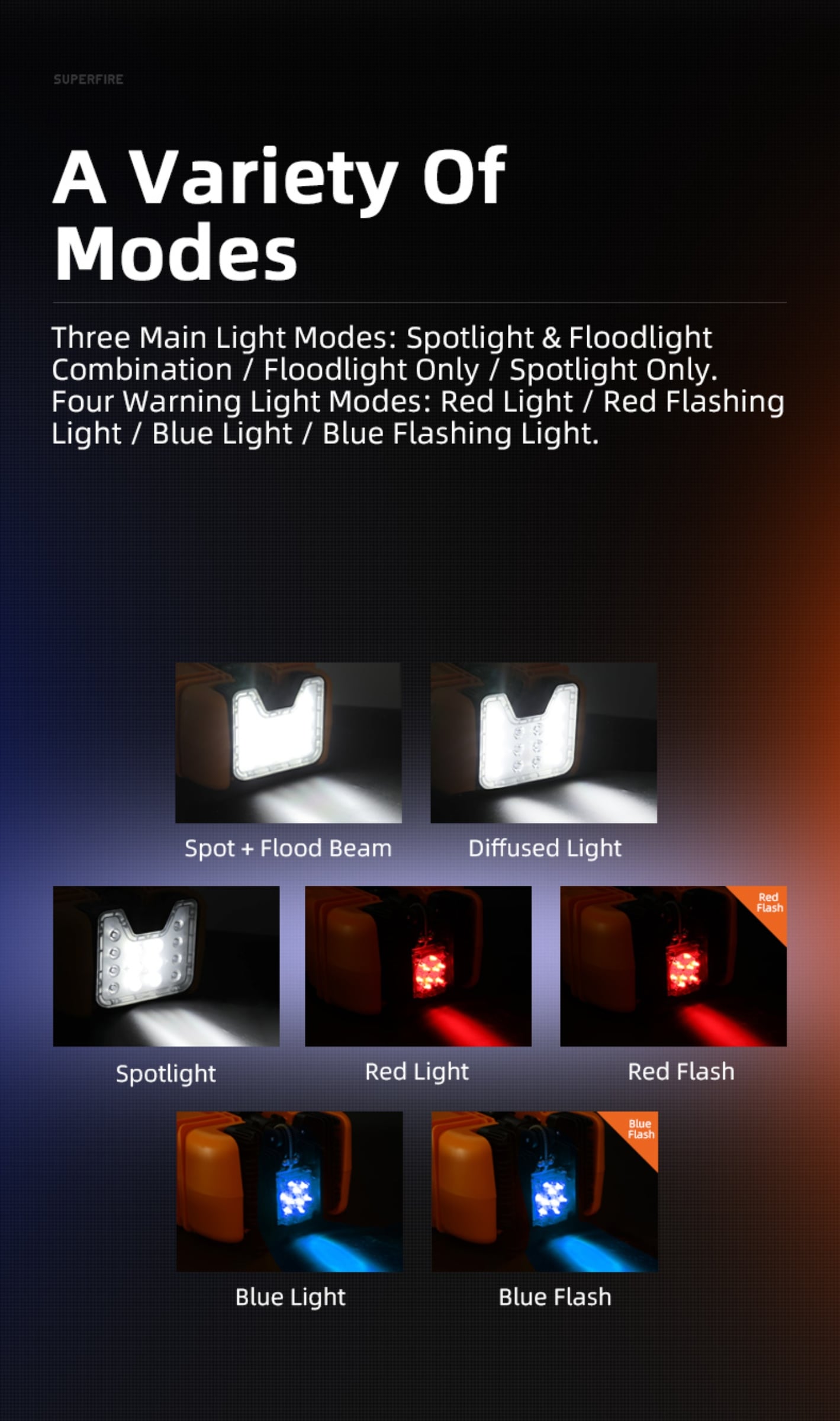

There are four warning light modes on the back of the lamp head. Press the button on top of the lamp head to switch modes in sequence:
Red → Flashing Red → Blue → Flashing Blue → Off
Charging Indicator
During charging, the charger indicator light is red. When fully charged, it turns green.

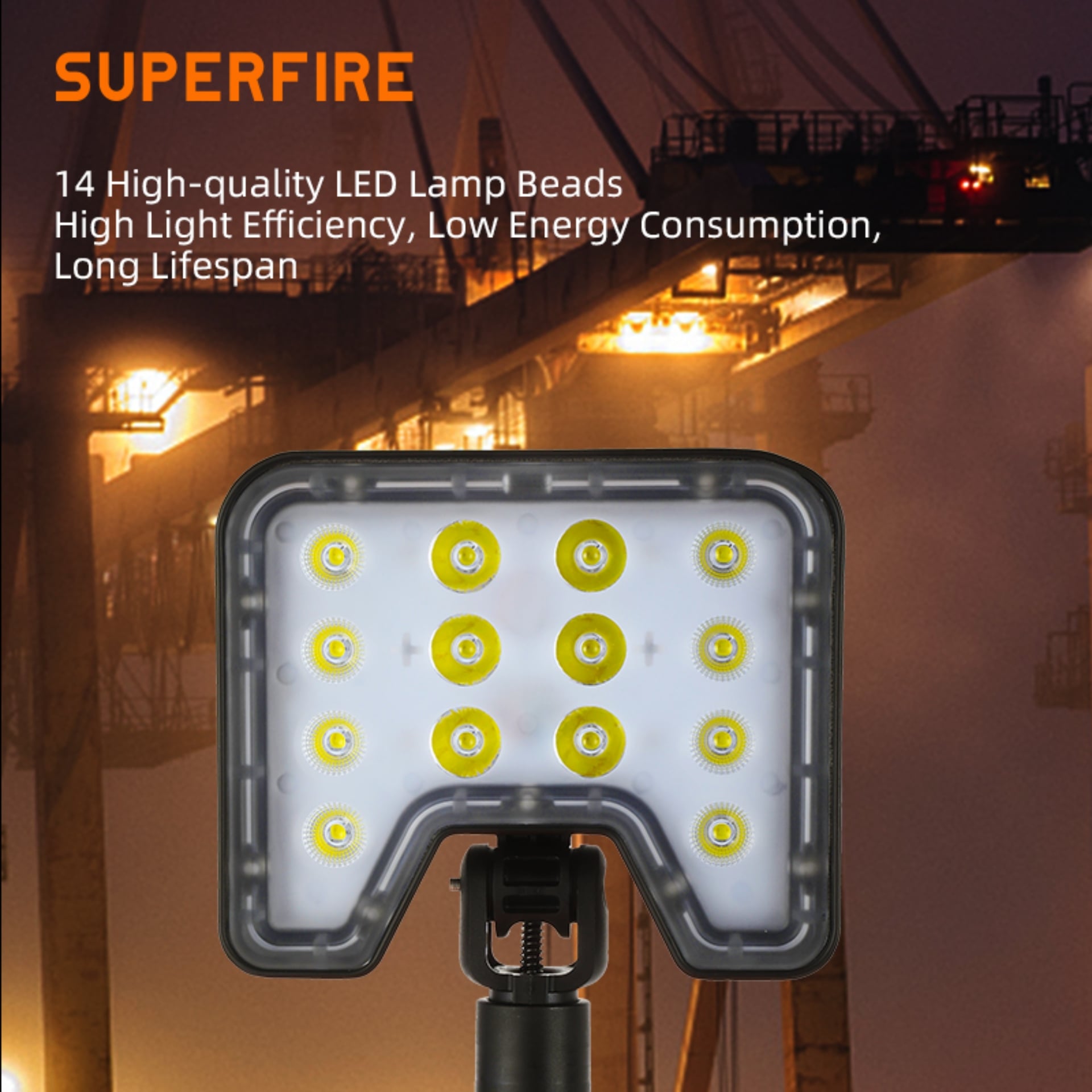

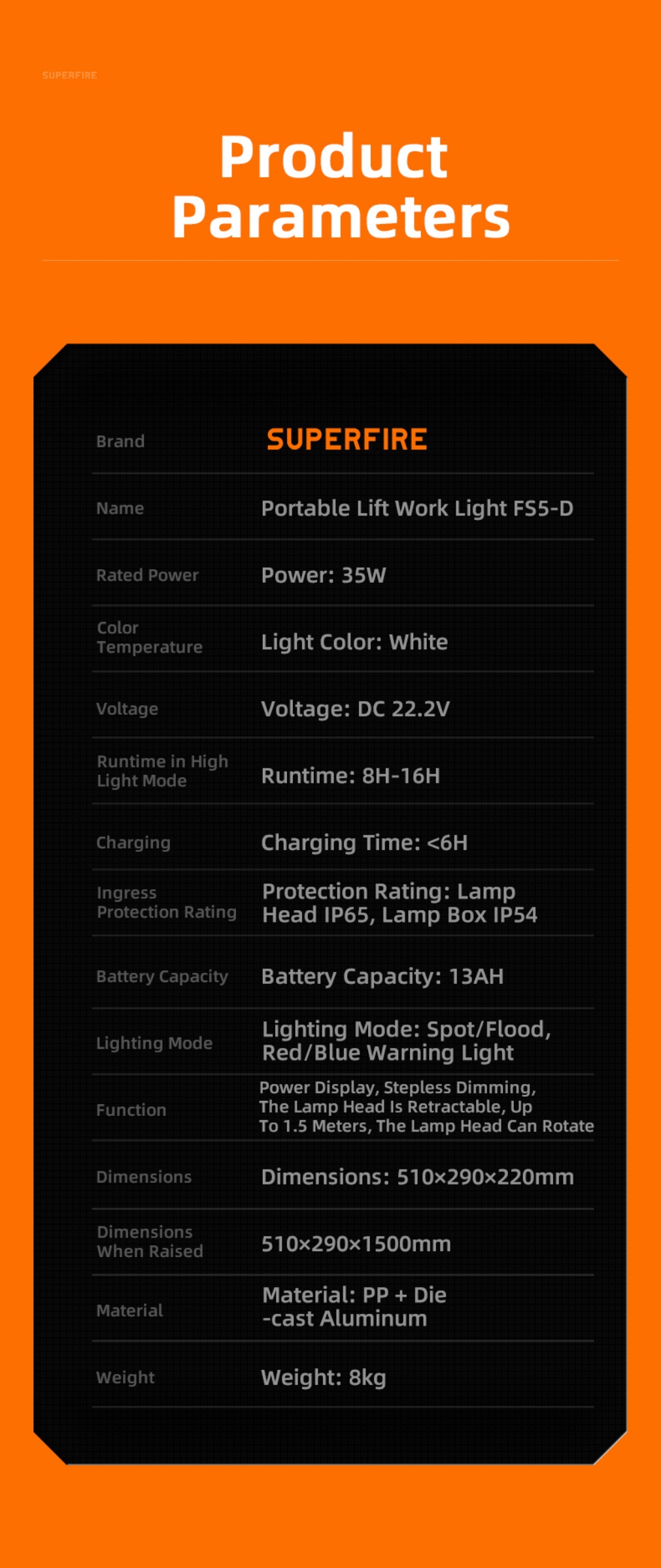

LED Bulb:OSRAM-P8

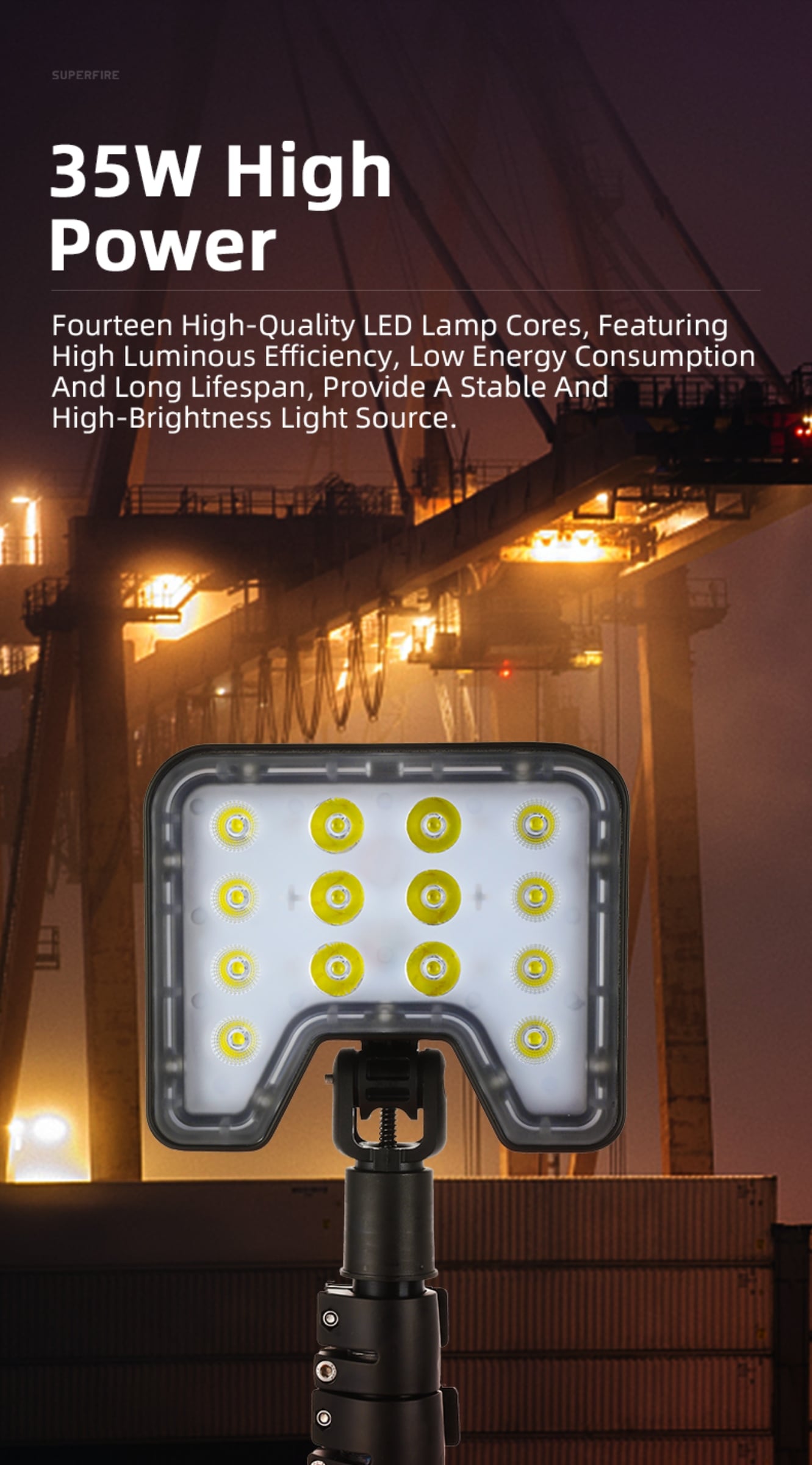

Power:35W
Luminous:4684LM
Irradiation Area:50-80 Square Meters
Distance:420M
Voltage:DC 22.2V
Runtime:8H-16H
Charging Time:<6H
IP rating:Lamp Head: IP65; Lamp Box: IP54
Battery:13AH

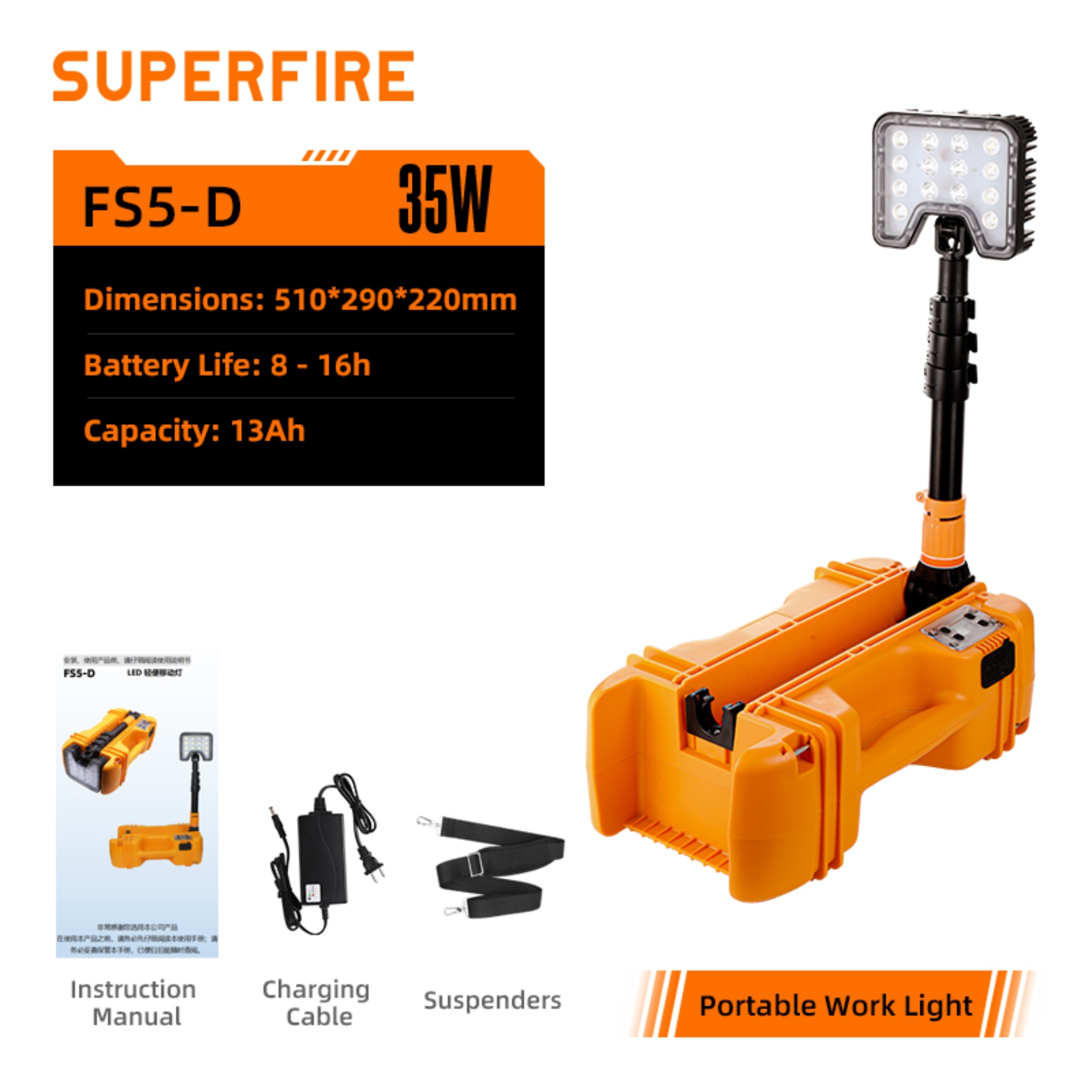

Size:510×290×220mm
Lifted Size:510×290×1500mm
Material:PP + Die-Cast Aluminum
Weight:8kg
Ambient Temperature:-20~40℃
