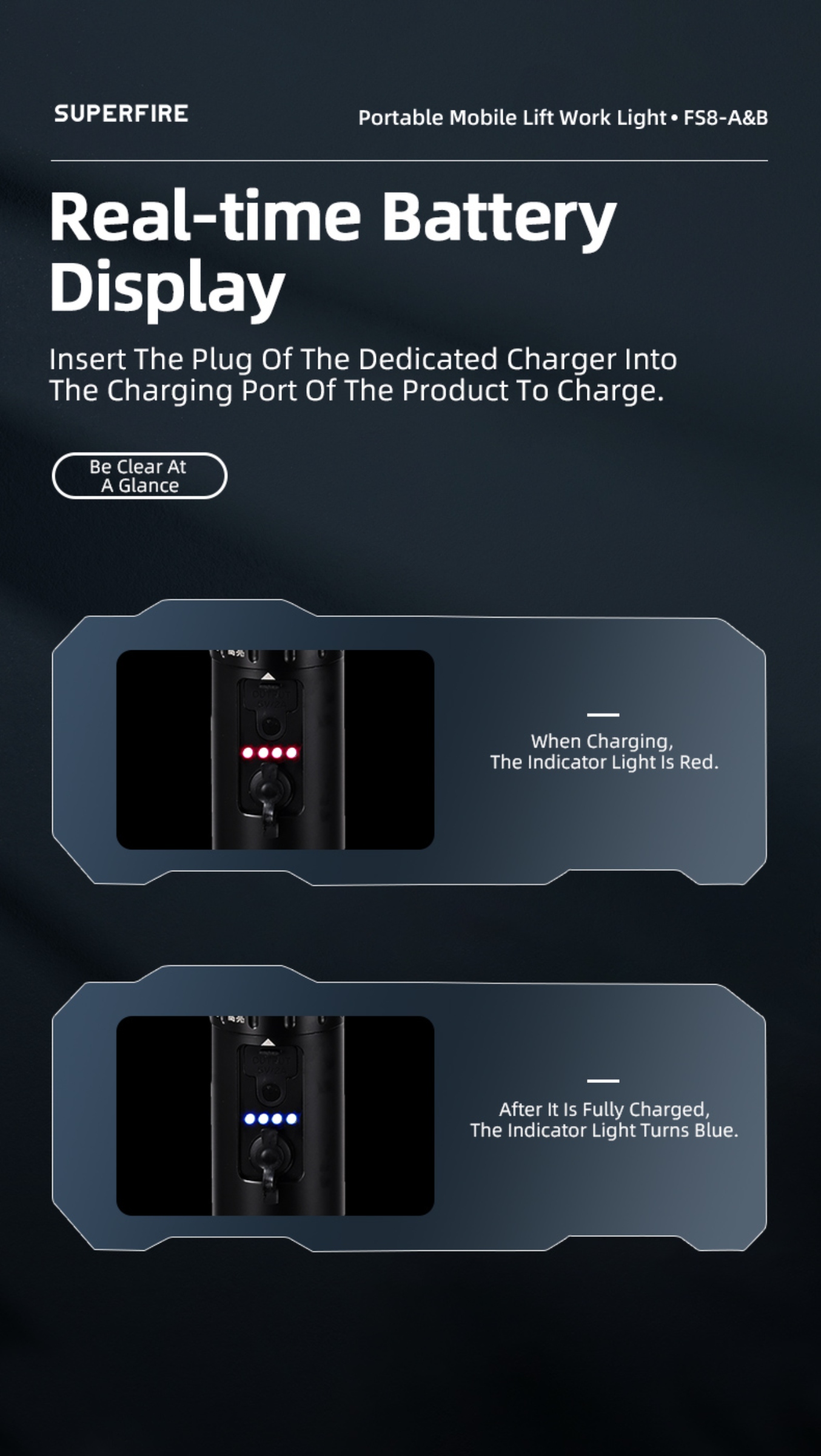

• Charging Before Use

  Insert the dedicated charger plug into the light’s charging port. The indicator turns red during charging and green when fully charged.

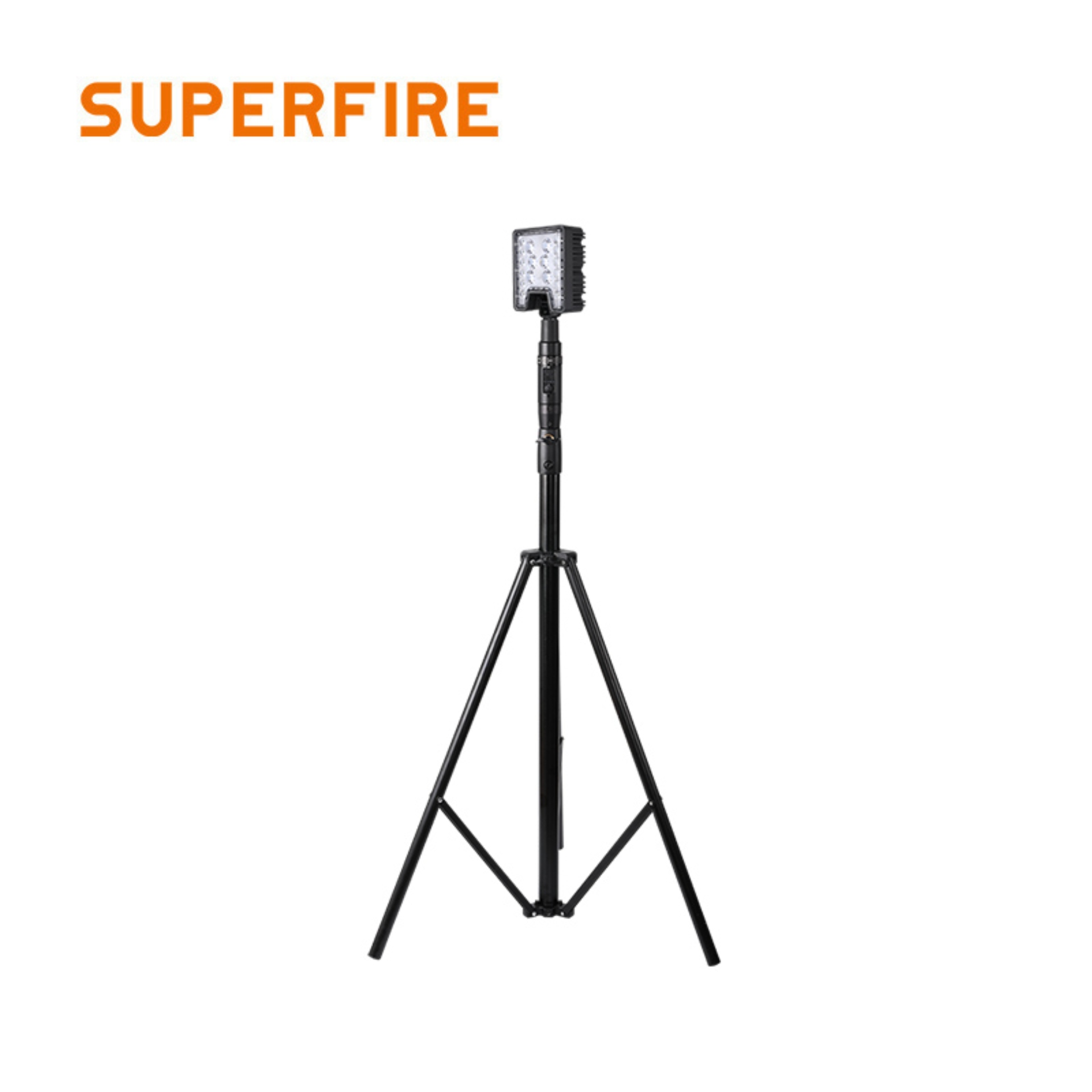

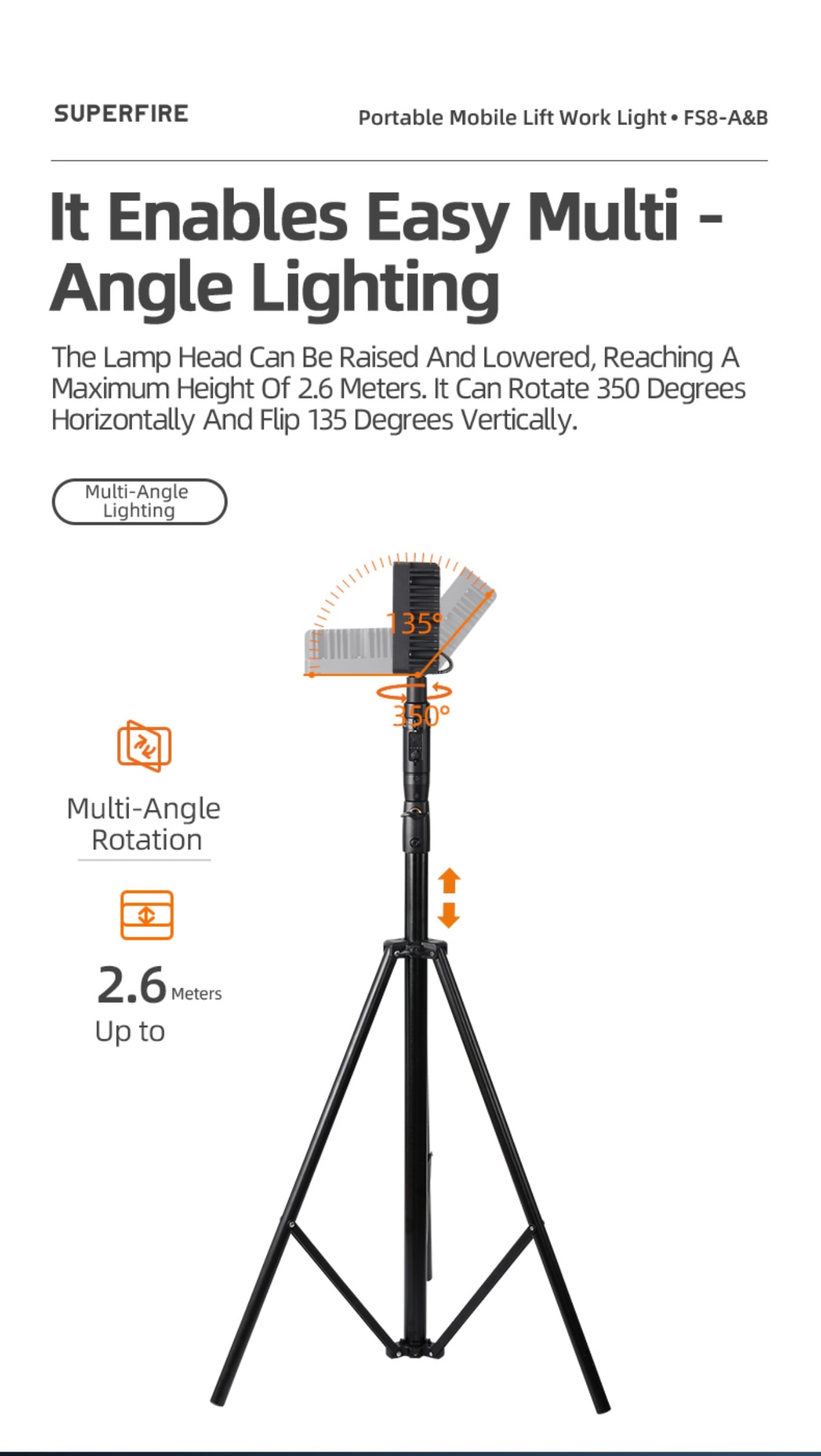

• Setup & Height Adjustment

  Place the light steadily on the ground, unfold and lock the tripod, then adjust the telescopic rod to the desired height and tighten the screws.

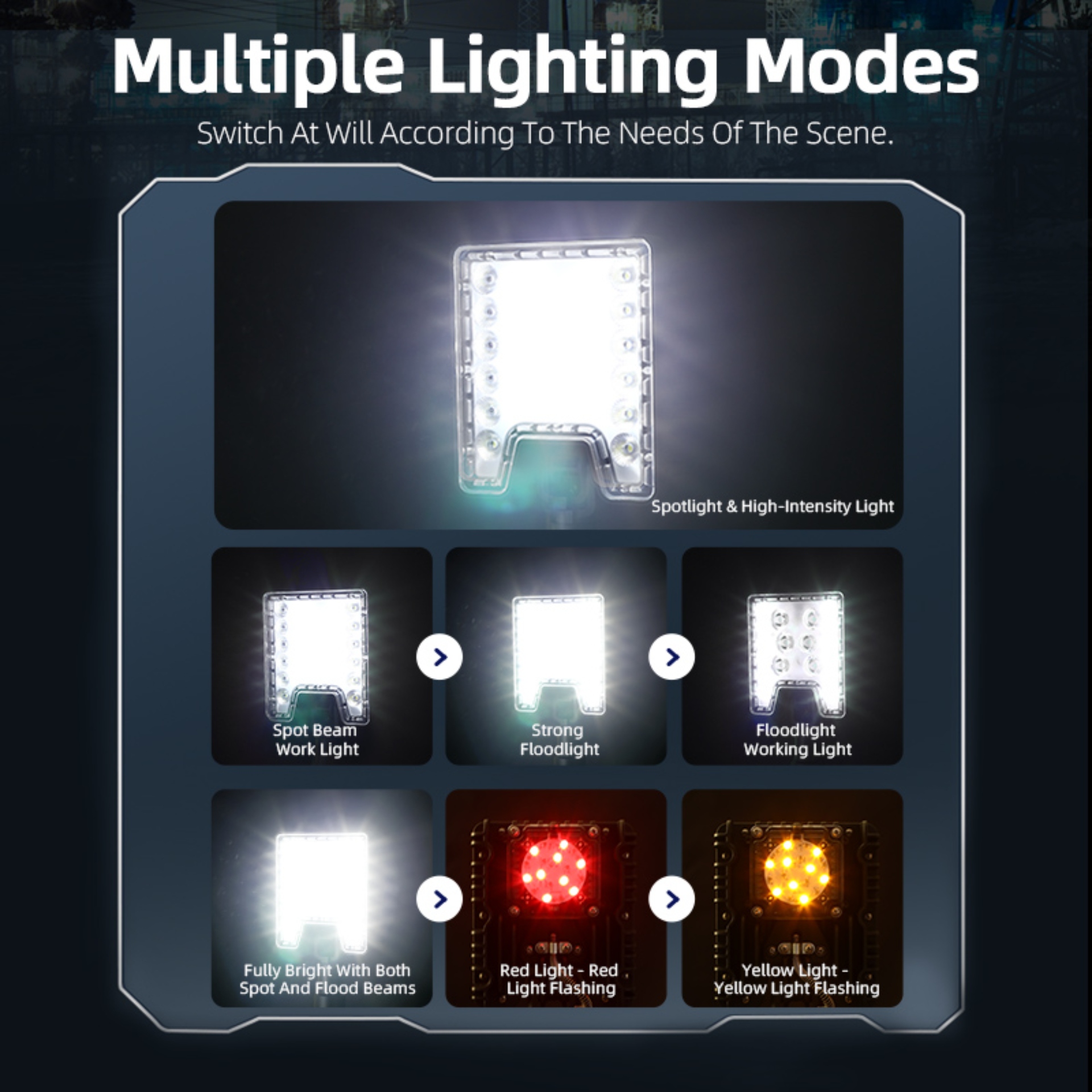

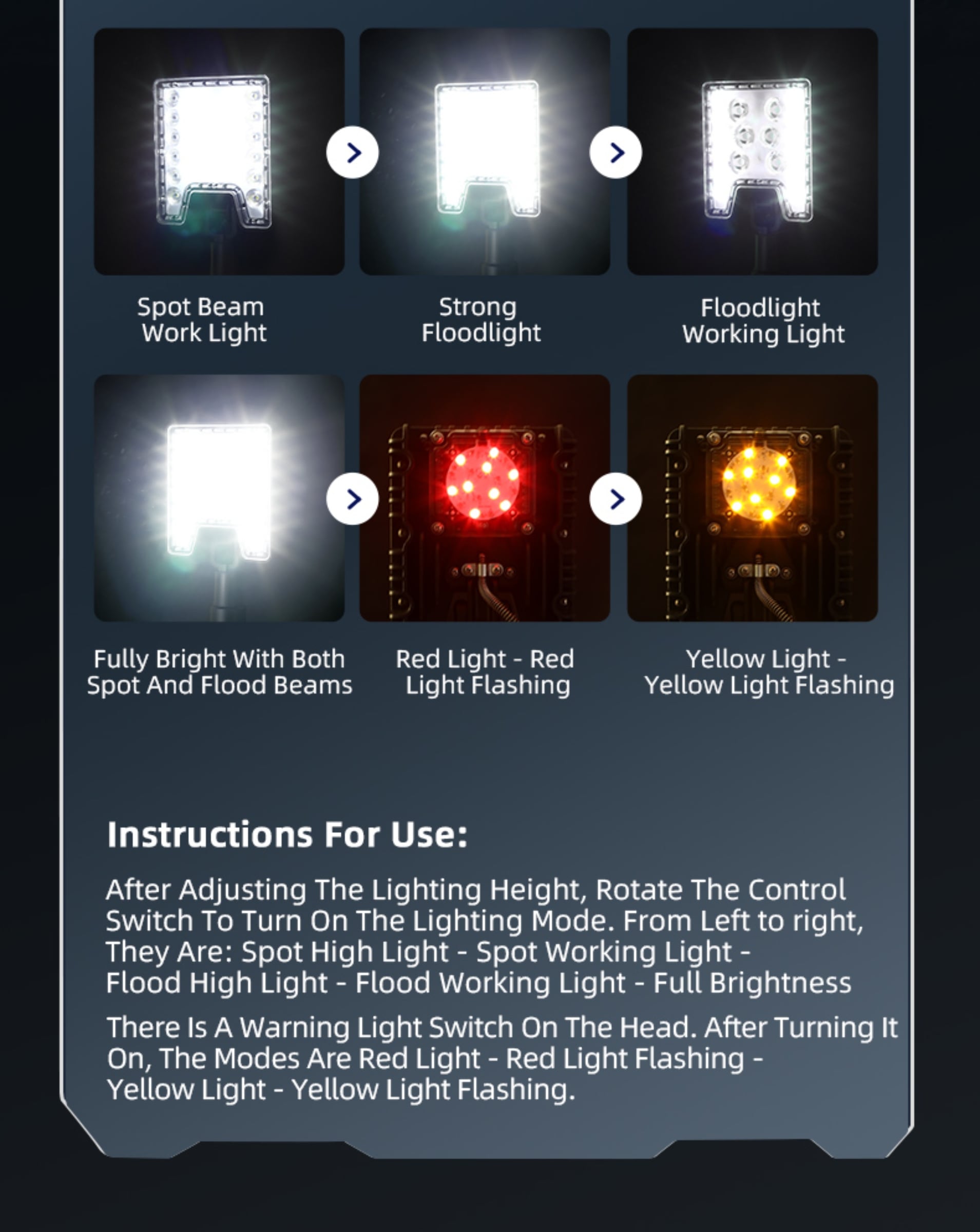

• Lighting Mode Control

  Turn the control switch to cycle through modes: Spotlight Strong → Spotlight Working → Floodlight Strong → Floodlight Working → Full Brightness. Press the warning light switch for red/red flashing/yellow/yellow flashing modes. Adjust the lamp head angle as needed.
• After Use

  Turn off the light via the power switch, retract the lifting rod and secure the latch.
• Charging Protection

  The built-in charger features overcharge protection. Red indicator = charging; Green indicator = fully charged.

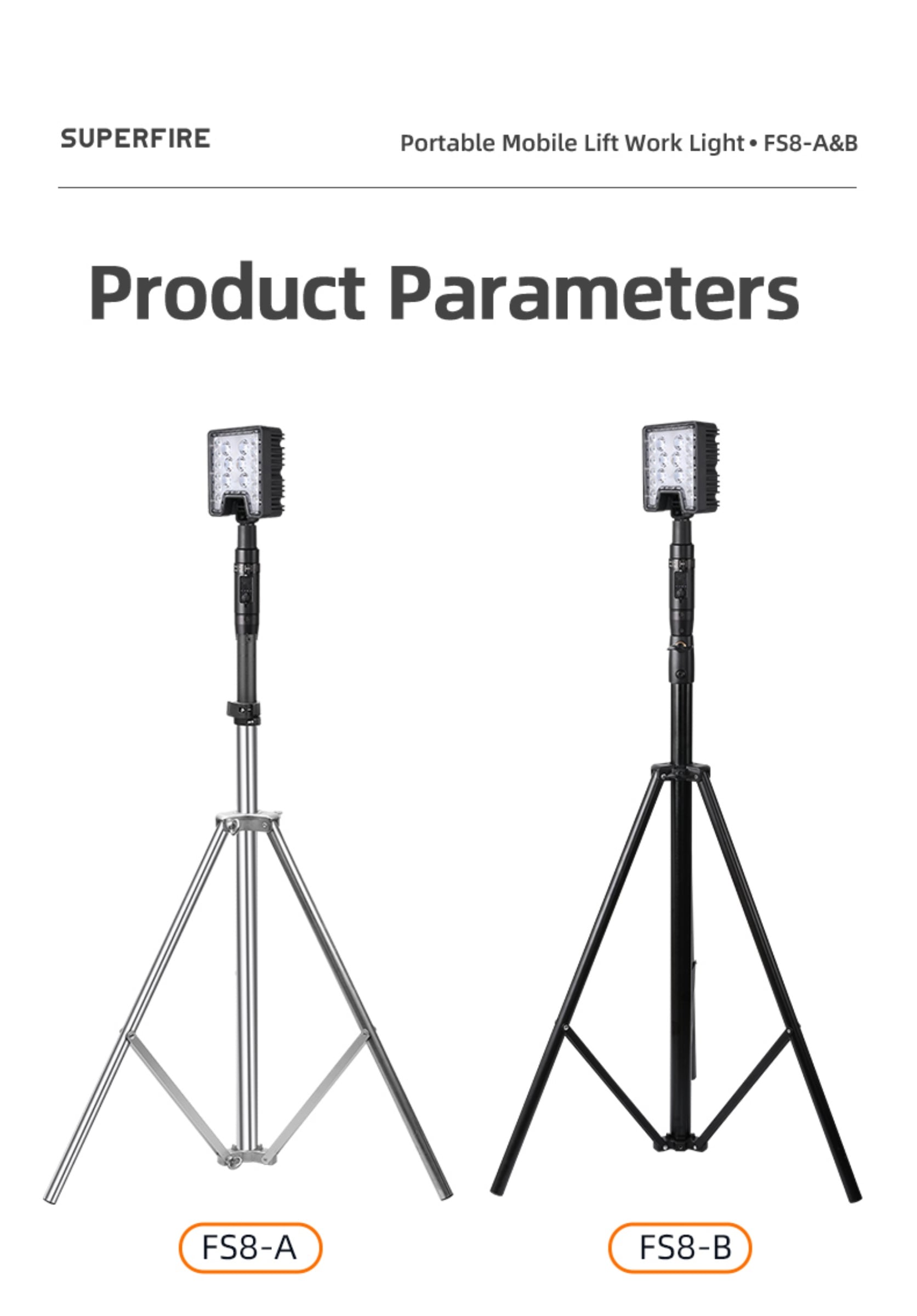

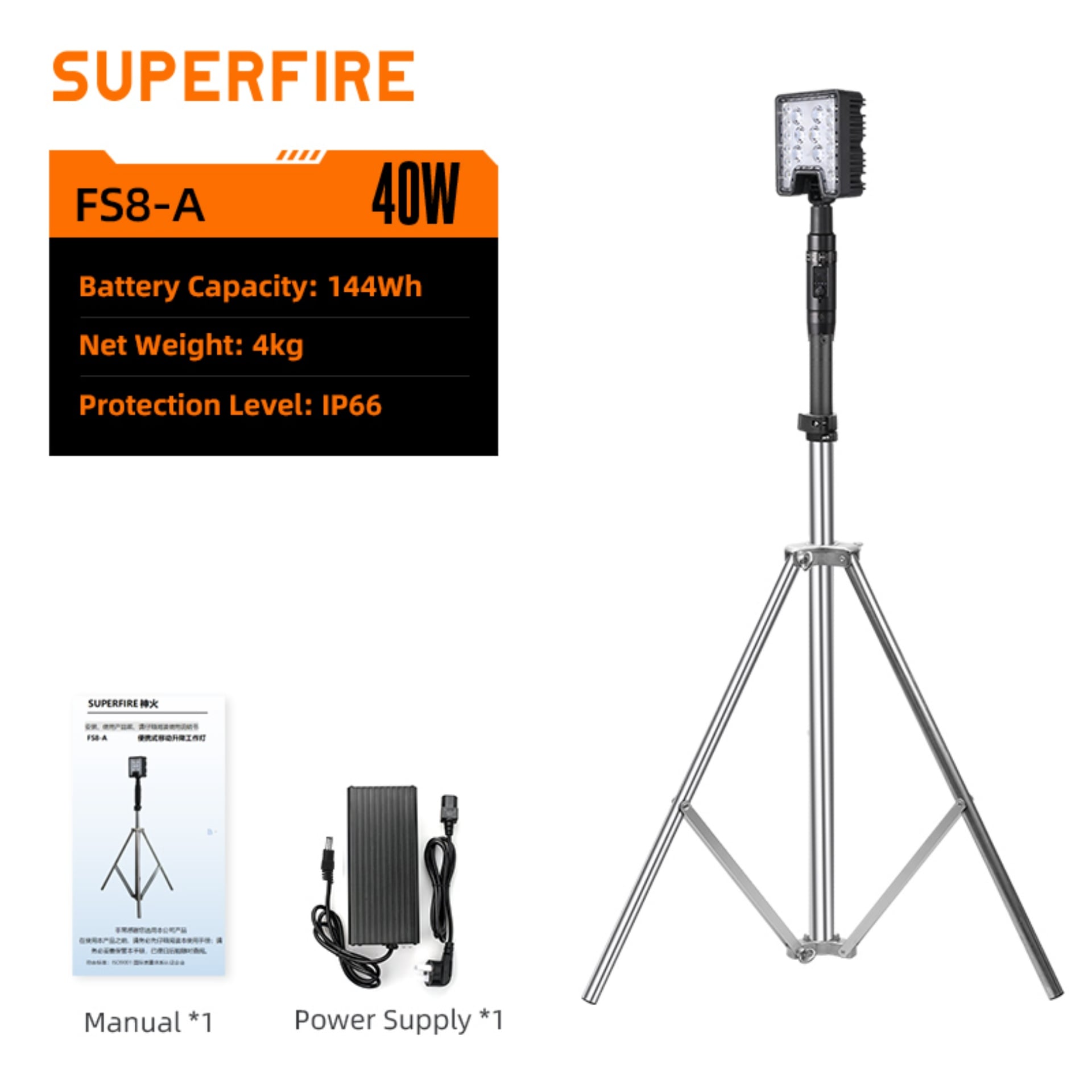

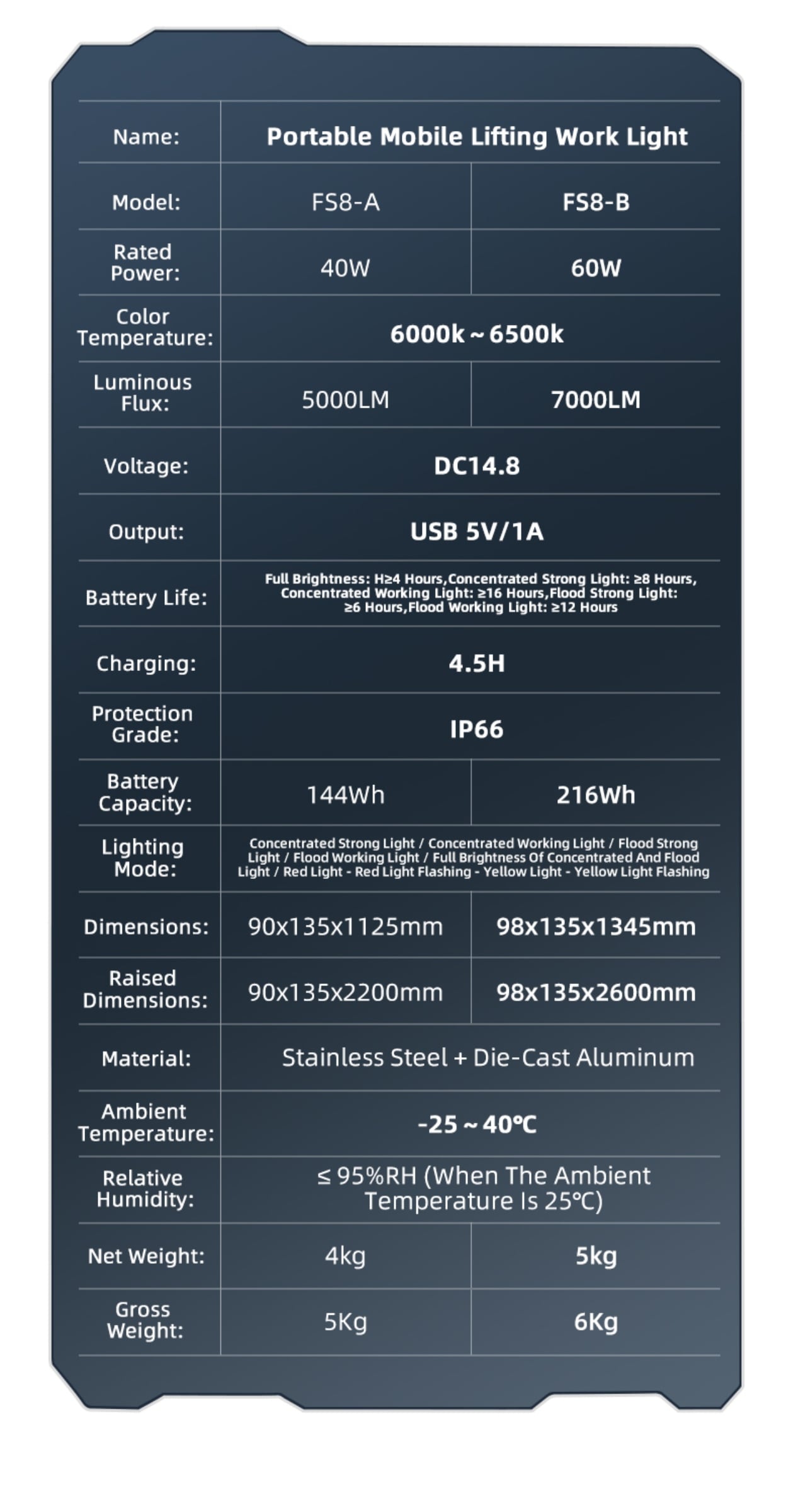

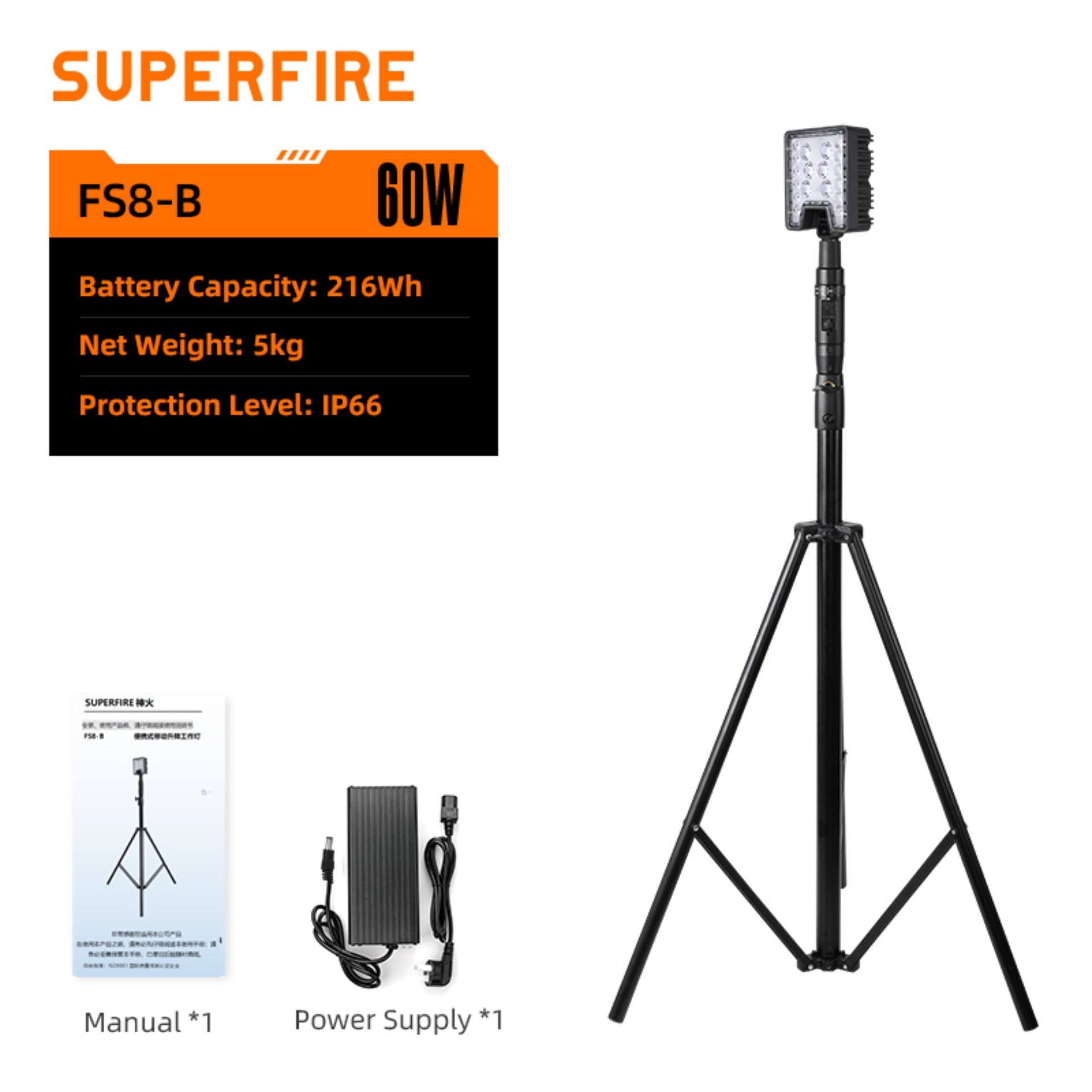

Model:FS8-A/B

Power:40W/60W

LED Chip:OSRAM P8

Color Temperature:6000k～6500k

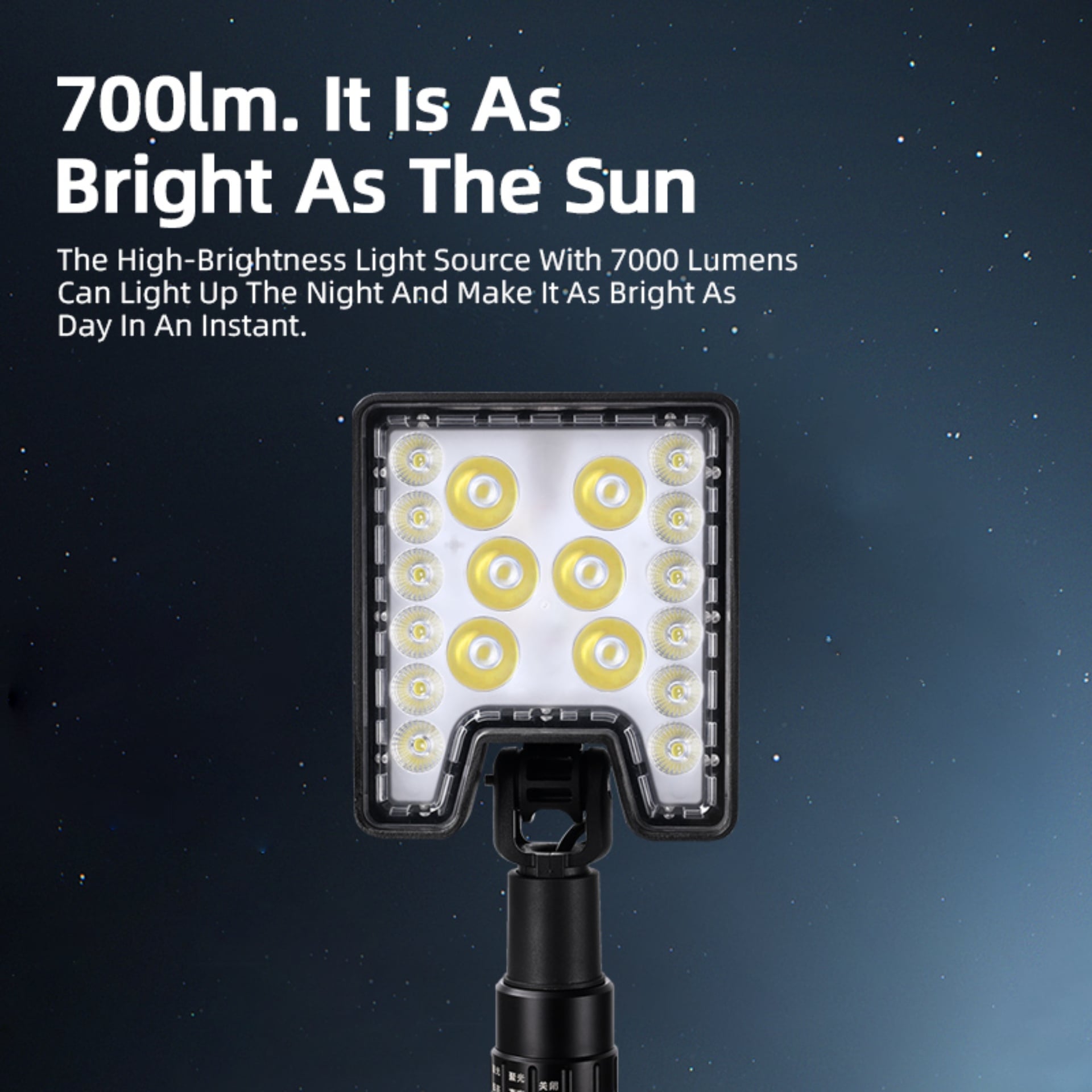

Luminous:5000LM/7000LM

Voltage:DC14.8

Output:USB 5V/1A

Charging Time:4.5H

Runtime:4-12H

IP rating:IP66

Dimension (Closed):90x135x1125mm/98x135x1345mm

Dimension (Extended):90x135x2200mm/98x135x2600mm

Material:Stainless Steel + Die-cast Aluminum

Ambient Temperature:-25～40℃

Weight:4kg/5kg

Battery:144Wh/216Wh
