SUPERFIRE HL77-C Sensor Headlamp
220 lumens, 400m beam, 5 lighting modes, induction control, and Type-C charging. Perfect for outdoor adventures, night work, and emergencies.

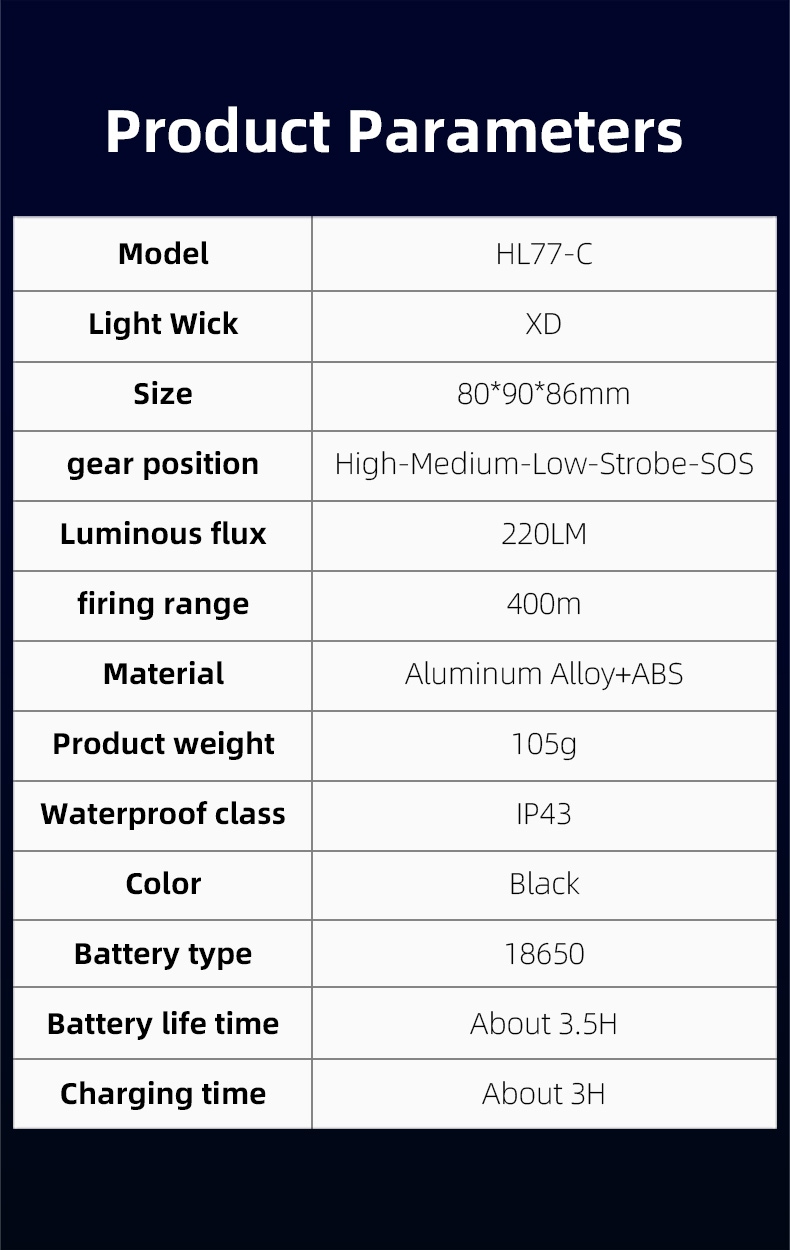

Power source 3W
Lumens (Strong)220 LM
Beam Distance400 meters
Color Temperature9400K(White Light)
BatteryBuilt-in 2×18650 Li-ion, 800mAh
Runtime~3.5 hours
Charging PortType-C
Water ResistanceIP43
Impact Resistance1 meter
Weight105g (headlamp only)
Dimensionsφ80×90×86mm
MaterialAluminum + ABS
Modes 5 mode ( Strong → Medium → Weak → Strobe → SOS )

The HL77-C is a special offer sensor headlamp designed for versatile, hands-free lighting solutions. With a maximum 220 lumens output and 400-meter beam distance, it delivers powerful white light for outdoor activities (hiking, camping), night work, or emergency situations.

Product Advantages



1. Dual Control Modes: 5 manual lighting modes (High/Medium/Low/Strobe/SOS) + induction mode (hand-swipe to turn on/off) for flexible use in complex environments.

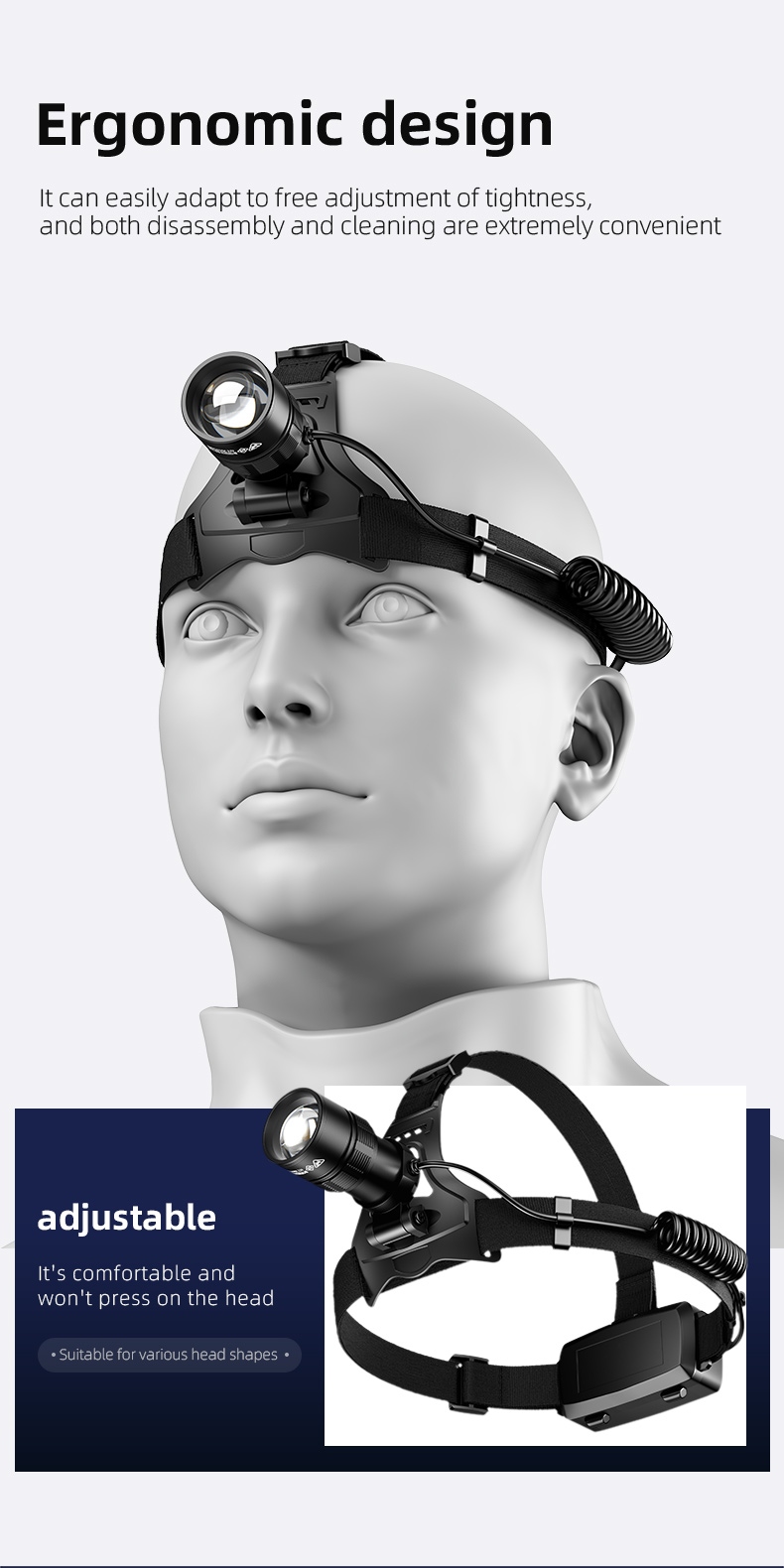

2. Ergonomic Design: Over 90° angle adjustment for the headlamp and a comfortable strap ensure a customized fit for long wear.

3. Lightweight & Sturdy: Aluminum+ABS material (105g) makes it easy to carry while withstanding daily wear and tear.

4. Universal Charging: Type-C interface supports charging via chargers, power banks, or computers—no more worrying about incompatible cables.

5. Multiple Safety Protections: Built-in overcharge/over-discharge protectionreverse polarity protection, and low voltage cut-off extend battery life and ensure safe operation.

6. Powerful Illumination: 220 lumens (High mode) with a 400-meter beam distance—ideal for long-range visibility in dark conditions.

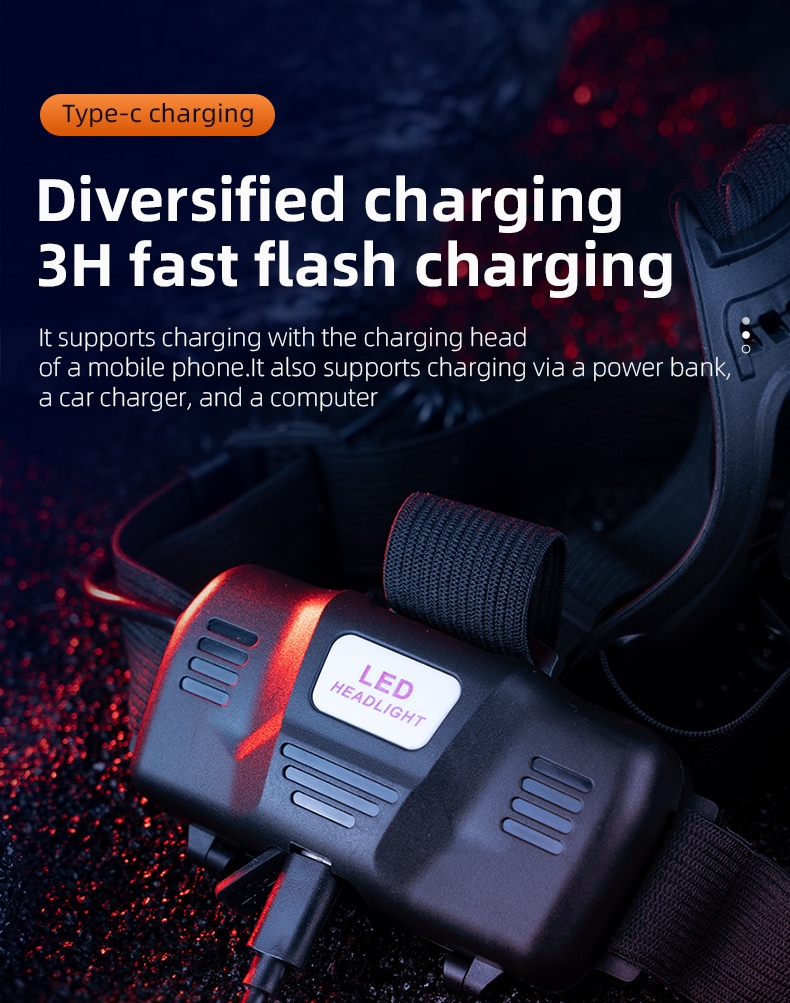

Battery & Charging



· Battery Specs: External 2x18650 lithium battery, 800mAh each

· Runtime: Approximately 3.5 hours (High mode)

· Charging Time: Approximately 3 hours (5V/1A input)

· Charging Port: Type-C (compatible with most devices)

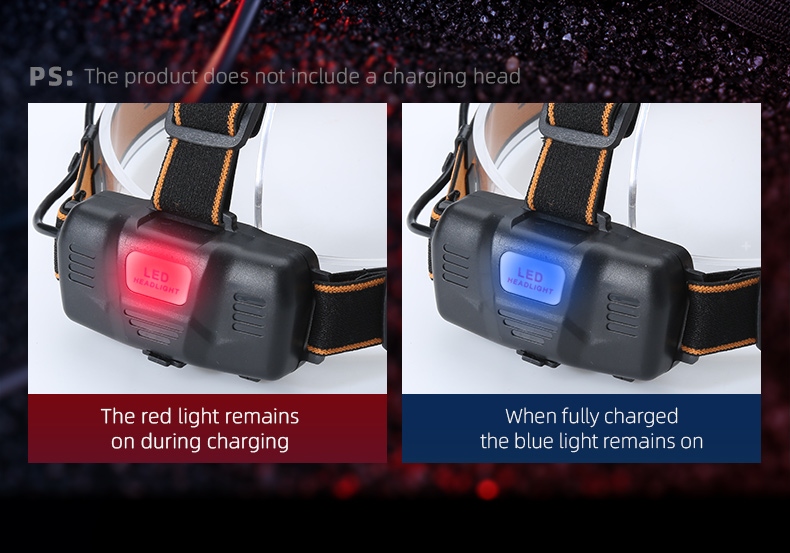

· Indicator:

· Red LED stays on during charging.

· Blue LED stays on when fully charged.

· Induction mode indicator lights up when enabled.



Performance Parameters



Mode

Input Voltage

Input Current

Input Power

Output Voltage

Output Current

Output Power

High

4.2V

1.66A

6.97W

2.82V

1.48A

4.18W

Medium

-

0.56A

2.35W

-

-

-

Low

-

0.36A

1.51W

-

-

-

Strobe

-

0.24-0.31A

1-1.3W

-

-

-

SOS

-

0.01-0.55A

0.04-2.31W

-

-

-


Usage Instructions

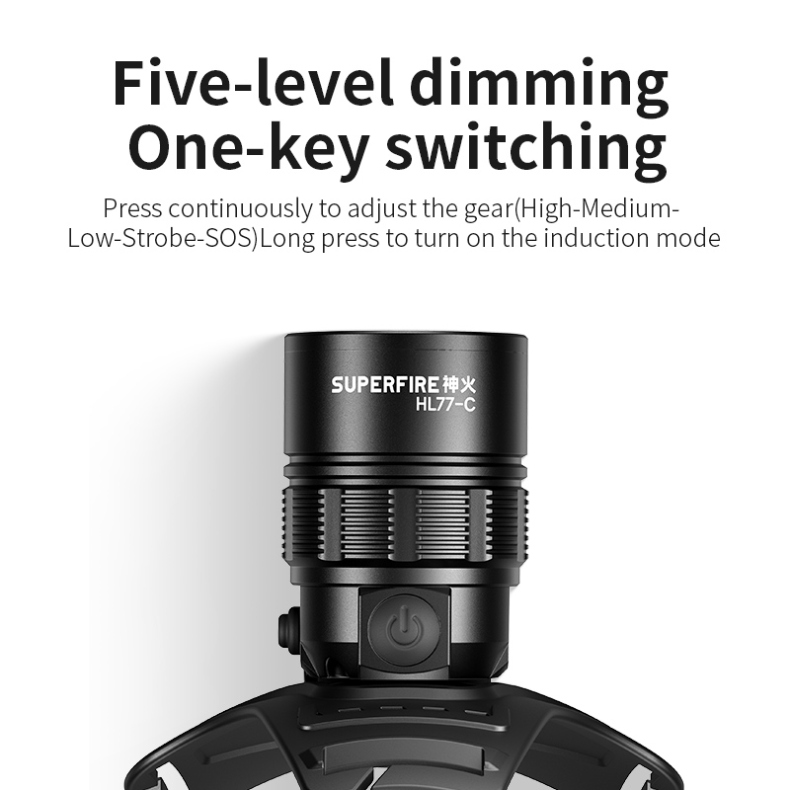

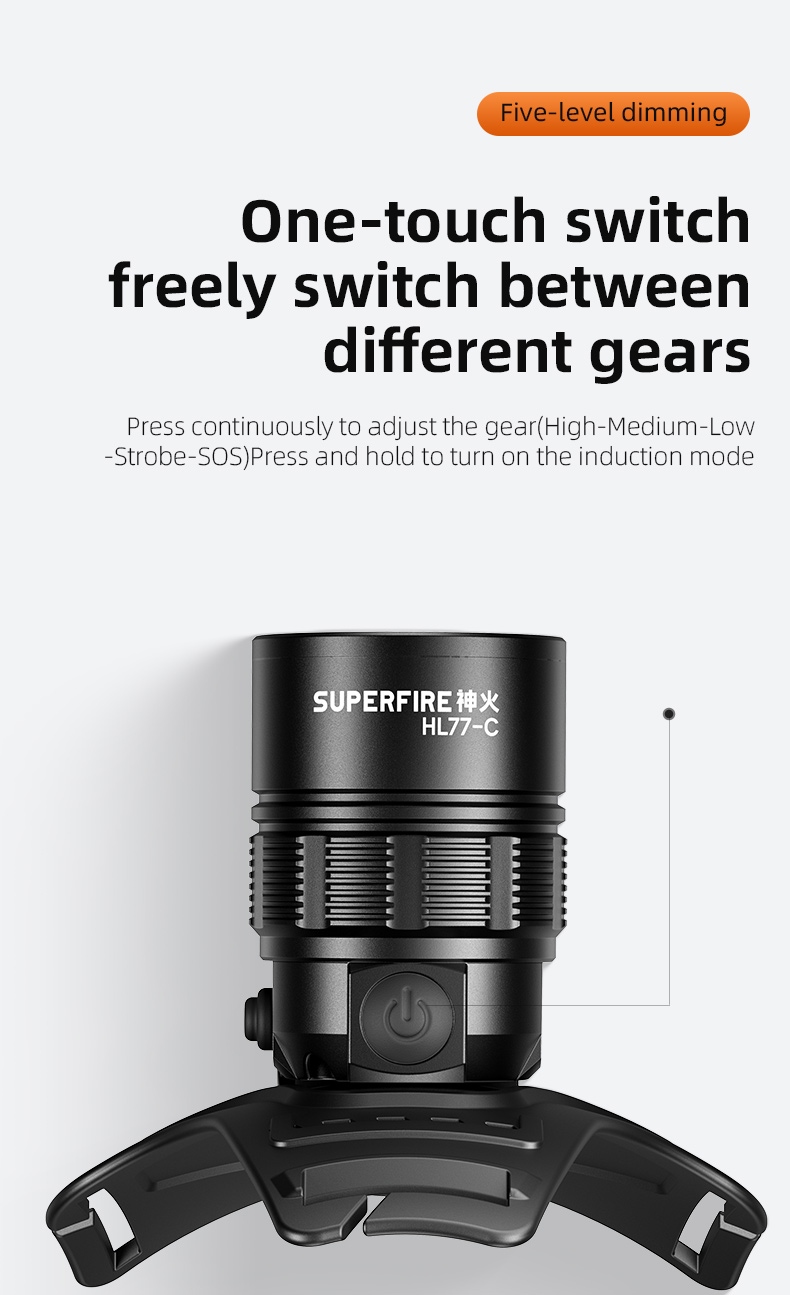

1. Power & Mode Adjustment



· Turn On: Press the lamp head switch to activate High mode.

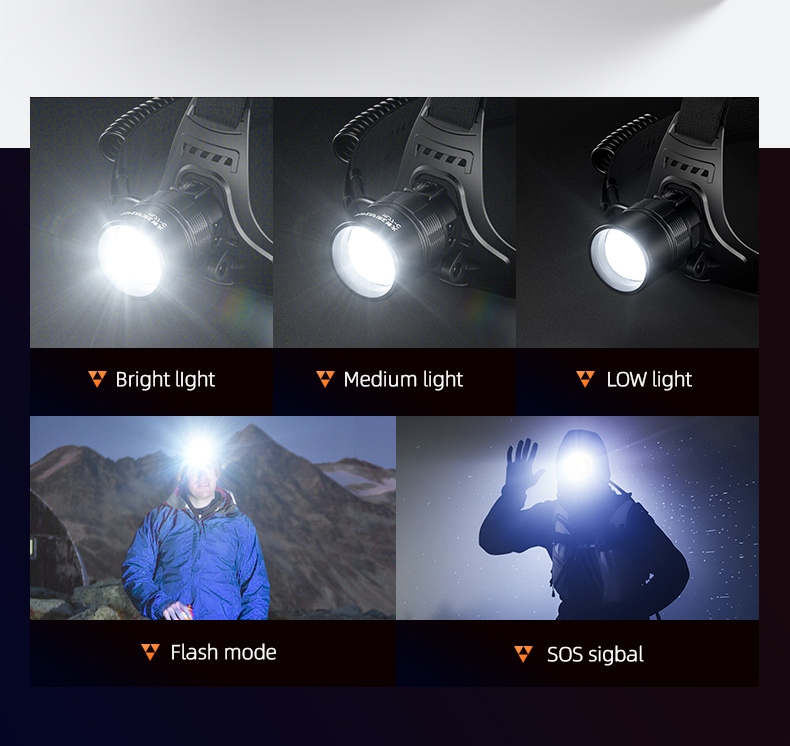

· Cycle Modes: Press repeatedly to switch between: High → Medium → Low → Strobe → SOS → Off.

· Quick Off: Long press the switch for 2 seconds to turn off the headlamp in any mode.

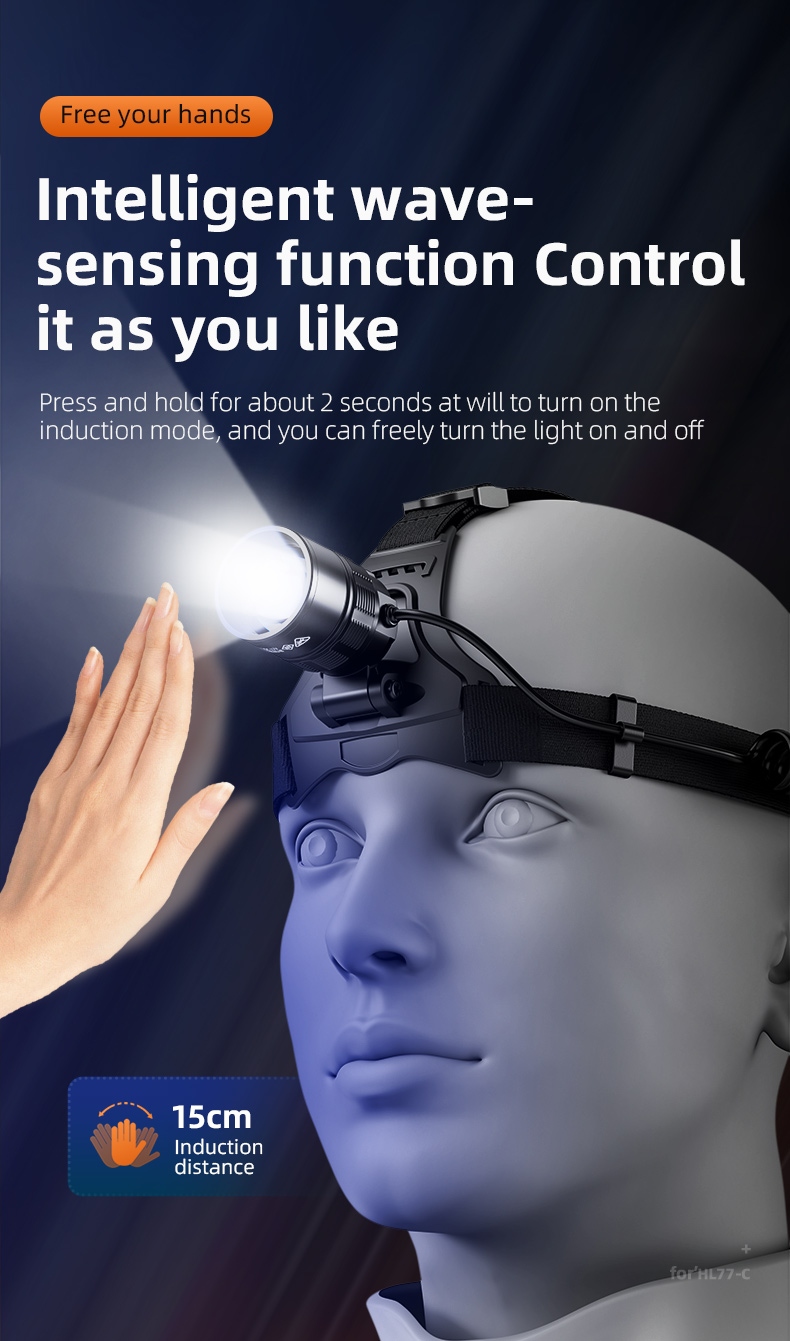

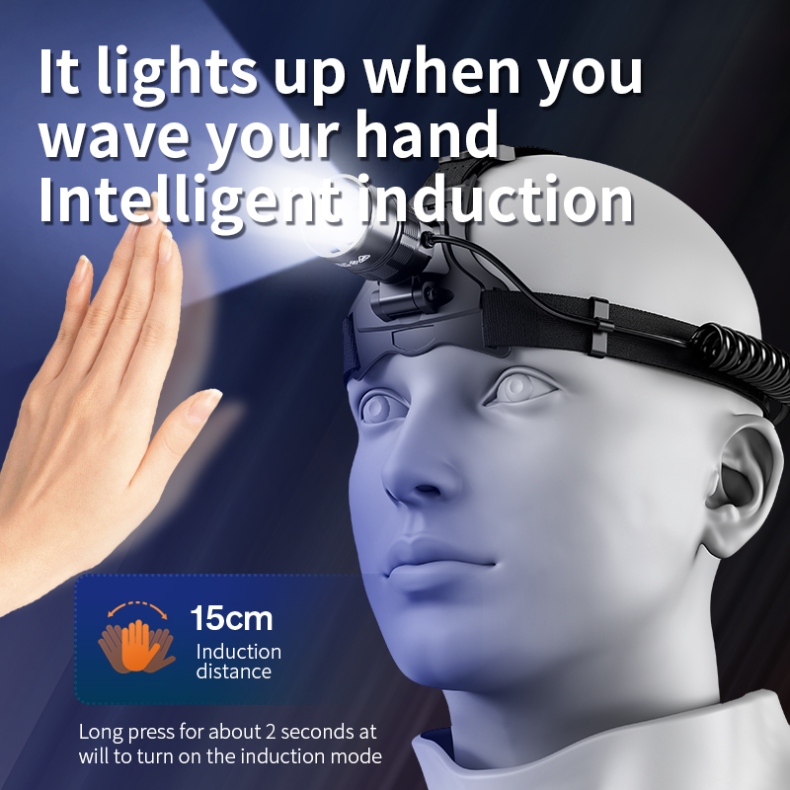

2. Induction Mode



· Enable: Long press the switch for 2 seconds in any mode to activate induction mode. The induction indicator will light up.

· Operation: Swipe your hand in front of the sensor to turn the light on/off (no physical contact needed).

· Disable: Long press the switch for 2 seconds again to turn off induction mode.

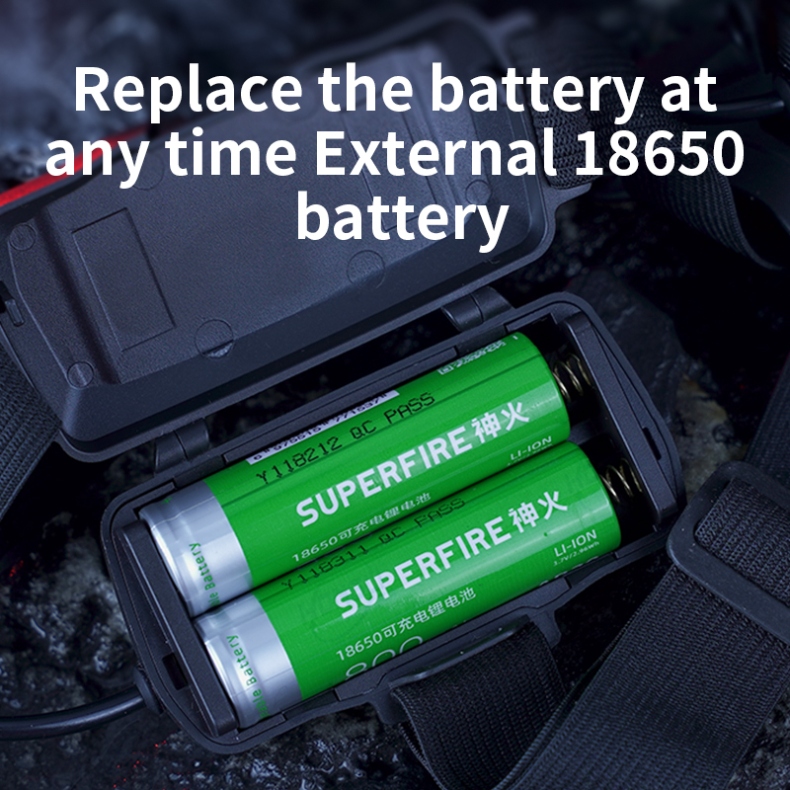

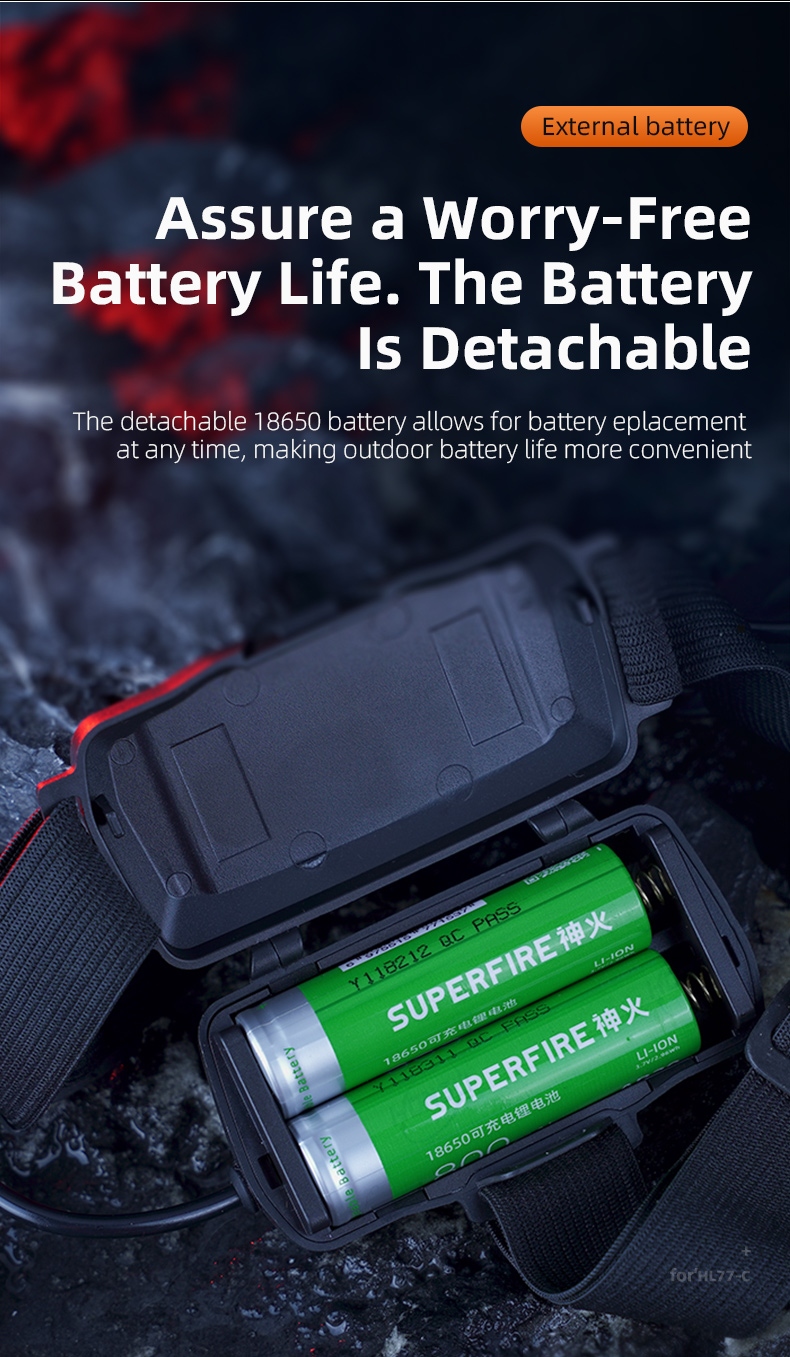

3. Battery Installation



· Open the battery compartment (follow the arrow indicator).

· Insert 2x18650 lithium batteries according to the polarity marks (“+” for positive, “-” for negative).

· Close the compartment securely.

4. Special Functions

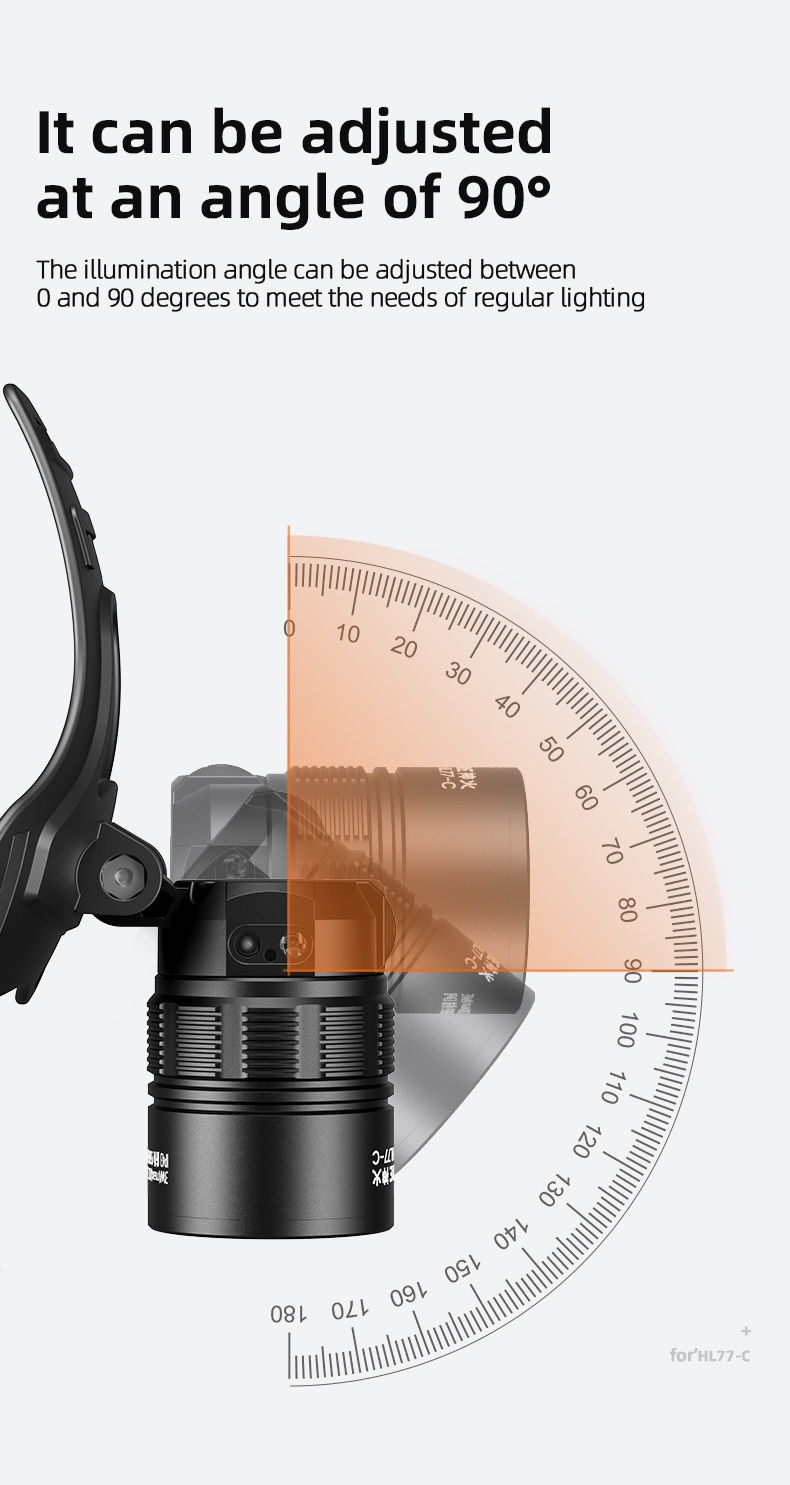

· Angle Adjustment: Tilt the headlamp up/down to adjust the beam angle (over 90°).

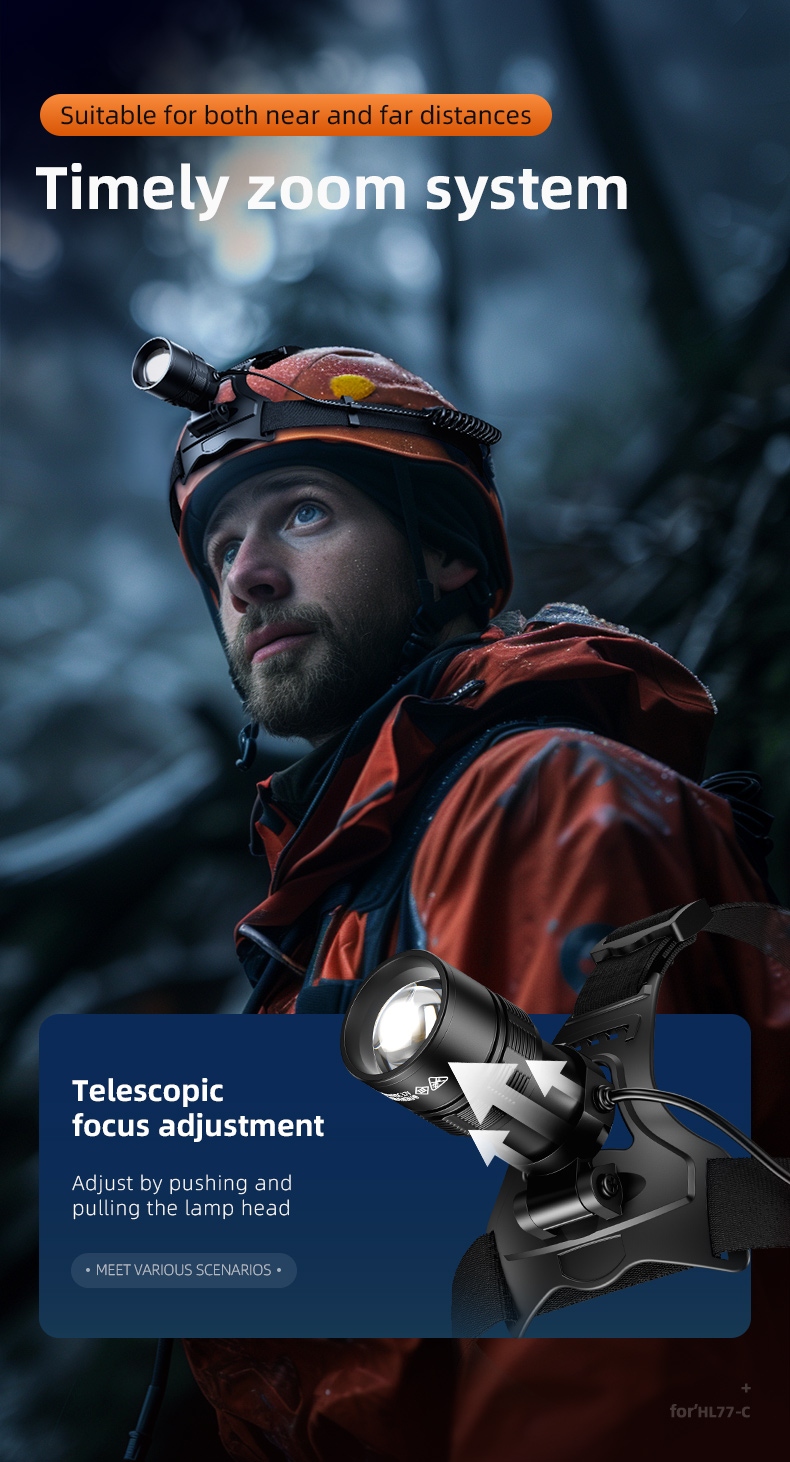

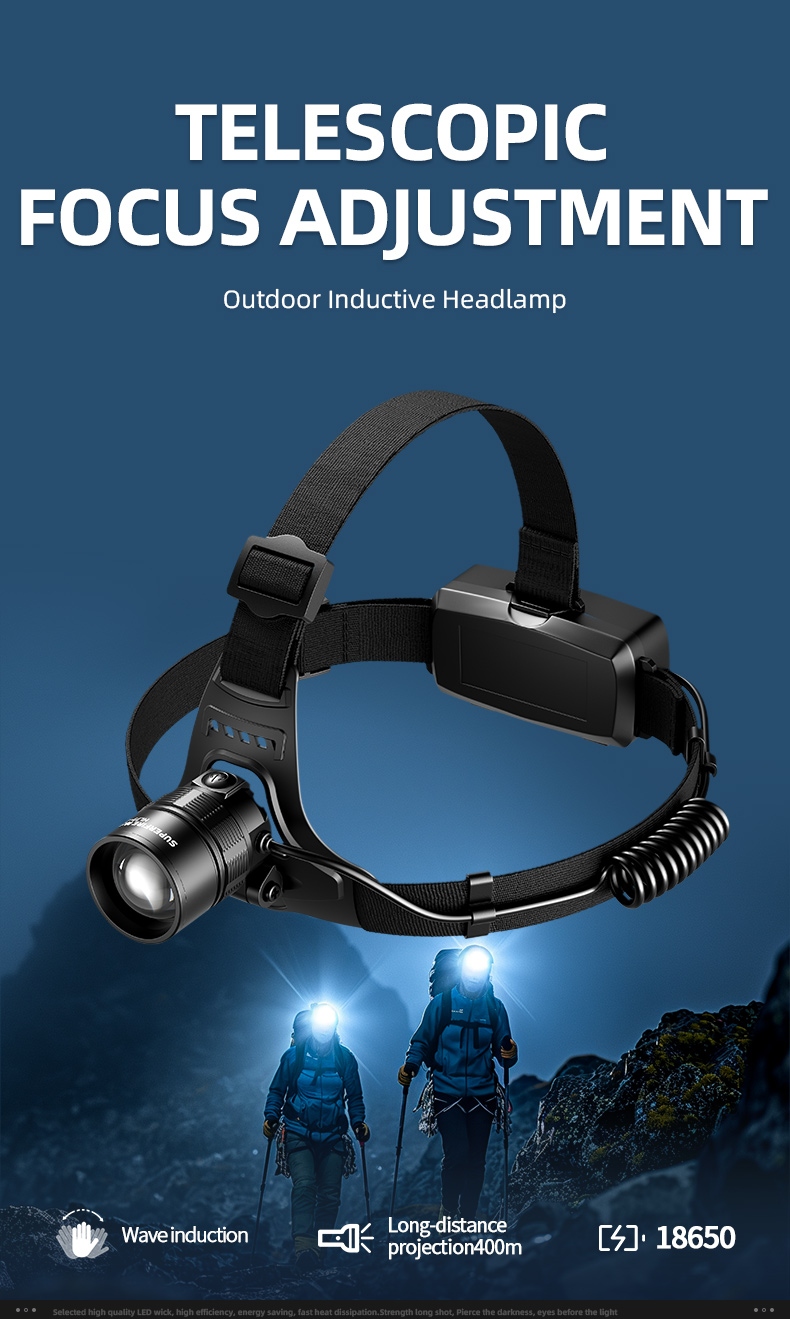

· Telescopic Zoom: Pull/push the lamp head to switch between spot light (long-range) and flood light (wide-area).

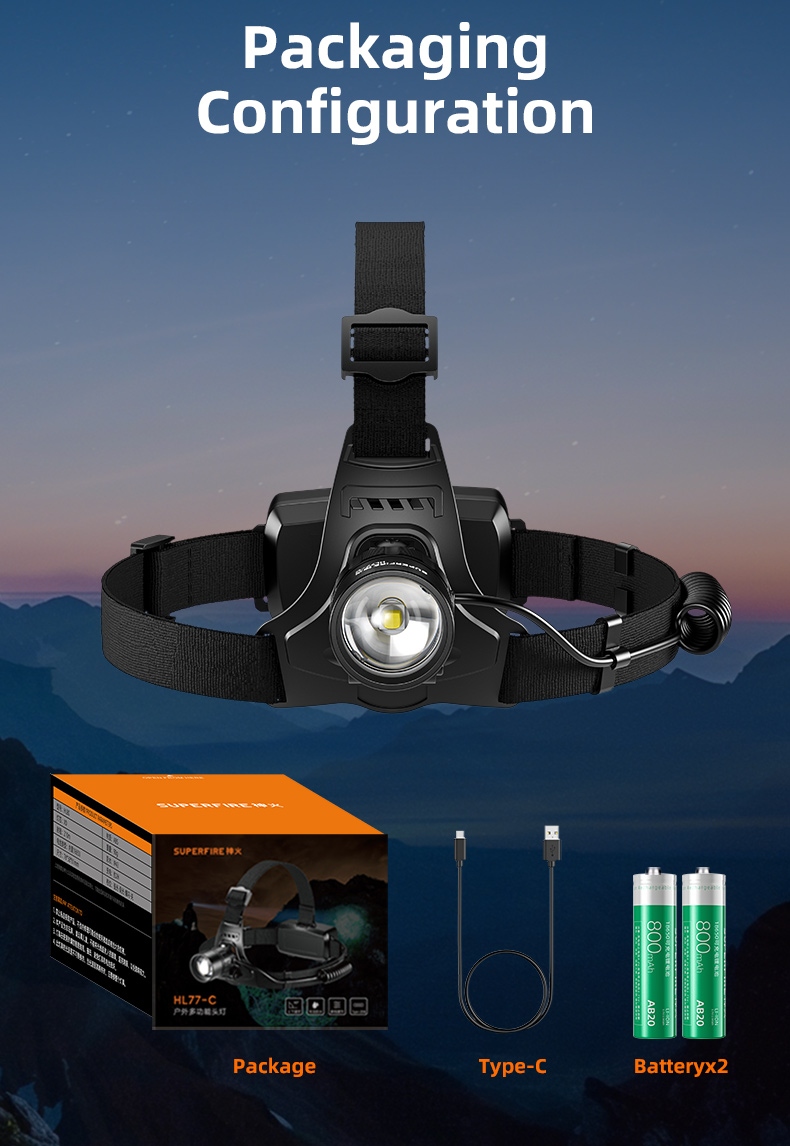

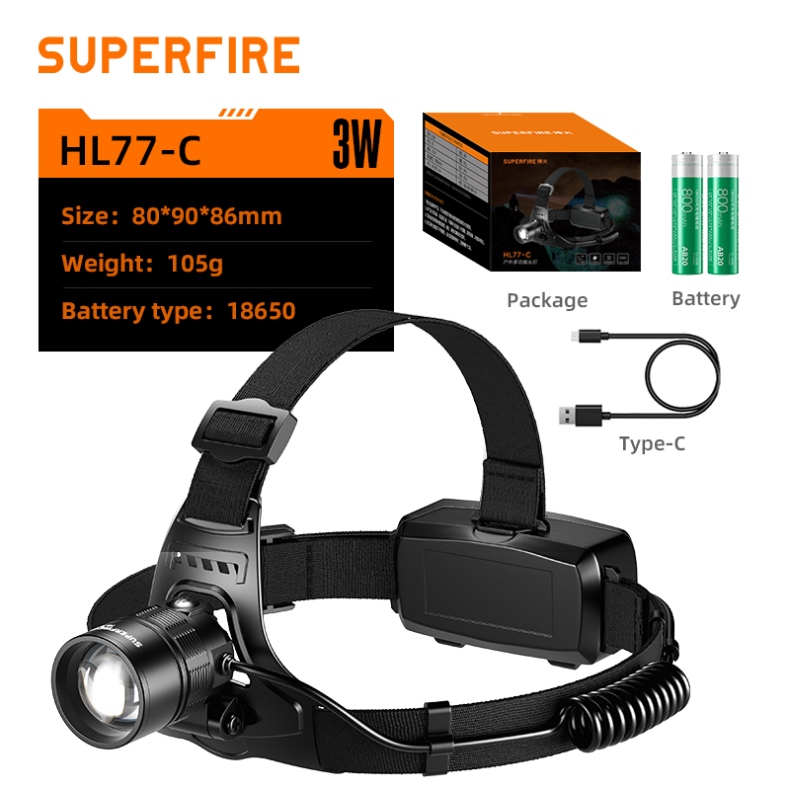

Package & Accessories



· Packaging: Custom SUPERFIRE box (non-UV coated).

· Included Accessories:

i. HL77-C Sensor Headlamp (Black, with SUPERFIRE logo)

ii. Custom Packaging Box (SUPERFIRE branded)

iii. PE Bubble Bag (compatible with HL77/HL82 series)

iv. 750px Type-C Charging Cable (0.7A, black)

v. 2x18650 Lithium Batteries (800mAh)

vi. Anti-Counterfeit Label (SUPERFIRE outdoor)




For bulk purchases or customized products, please contact online customer service, or leave a message.


You can also send email to [email protected].


Retail customers can search for "Superfire + model" on Amazon, AliExpress, Lazada and other platforms to purchase products.
